660 Spindle Series

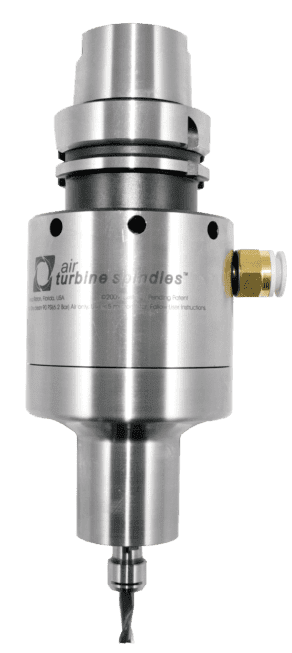

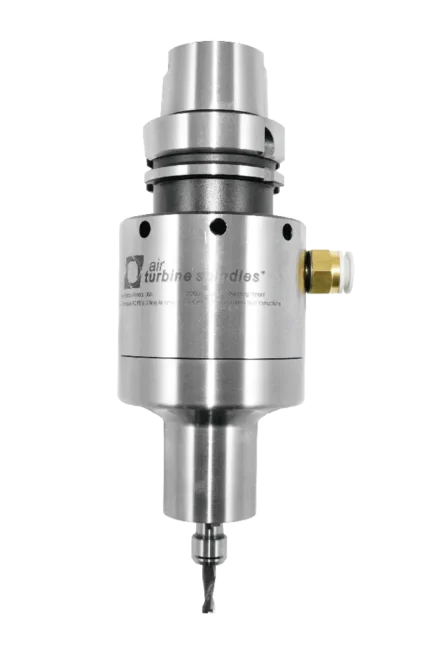

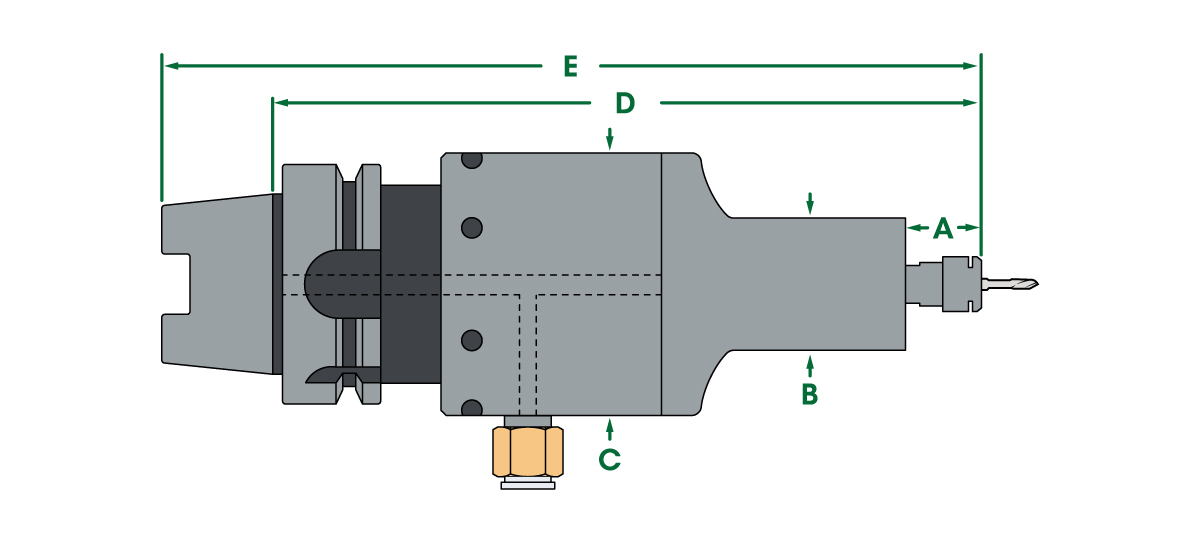

The 660HSK-A63 is ideal for heavier duty applications and milling hard materials in corners. The 660 features a higher governed constant speed at 50,000 rpm and even higher power at 0.94 hp (0.70 kW). For higher power, the double turbine 660X is available with 1.60 hp (1.19 kW) at 50,000 rpm. Our proprietary governor-controlled turbine maintains rated high speed optimizing tool performance and life. Air Turbine Spindles® direct-drive turbine operates with very low vibration and no heat in 24/7 operation. As a result the 660 mills faster in all materials, including tool steel, titanium and ceramics reducing cycle times dramatically. For long-life milling in hard materials, this robust 660 Series is equipped with quadruple air-cooled angular contact bearings.
Economical consumption of air results from our governor adjusting cfm air flow to the minimum required to maintain high speed. With 2µ precision in its Ultra-Precision Collet ER 11 the 660 is also very precise. Selectable rear or side air feed on each spindle. Automatic Loading from the magazine on all machines.
|ER11- 1/4″||ER11- 6mm|
|Speed RPM||Part #||Speed RPM||Part #|
|Power Rating hp (Kw)||0.94 (0.70)|
|Inlet Air Pressure||90 PSI (6.2 Bar)|
|Air Consumption Idle cfm (l/s)||14 (6.61)|
|Air Consumption Working Flow (l/s)||14 (6.61) – 35 (16.52)|
|Sound Level||Less Than 78 dBA|
|Max Shank Capacity||ER 11 – 1/4” (6mm)|
|Spindle Weight||112.8 oz (3.20 kg)|
|Accessories Models||Part #|
|High Flow Filter / Regulator / Extractor||30008|
|Tube 12mm O.D. – 8mm I.D. (order by foot)||16509|
|Hose & Fitting – 12mm O.D. – 8mm I.D. – 12’||30045|
Spindle, combo filter extractor (p/n #30008), collet, wrenches, hose and fittings, plug (for alternate air inlet not in use), and carrying case. ER 11 collet system (1/4” or 6mm collet standard – other sizes optional). Oil-free 90 psi / 6.2 bar, clean, dry air supply required.
We retrofit any CNC machine to mill at a constant high speed 24/7 – so any CNC can be a high-speed machine. This includes, but isn’t limited to DMG MORI, Haas, Fanuc Robodrill, Doosan, Hermle, Hurco, GROB, Brother Okuma, Makino and Mazak. Easy installation using selectable air feed inlets – choose side inlet NPT / Stop Block or center through shank/tool holder air feed. HSK, CAT, BT, and DIN Toolholder options are available. Learn more about Air Turbine Spindles on your CNC Machine by visiting their page at the links below.
Automatically load Air Turbine Spindles® in CNC machines with our patented wrap-around Toolchanger Mounting Assembly (TMA). This option allows CNC tool-changers to automatically load/unload our family of high-speed precision spindles using a proprietary collar system and mounting block or ring around the CNC spindle integrated to the right side of the CNC spindle in minutes.
Mounting blocks or rings compatible with Haas, Hurco, Doosan, Robodrill, Hardinge, DMG, Brother, Okuma, and all other CNC’s are available. We are accustomed to developing custom solutions for any CNC. A Universal Block can be provided for drilling your CNC screw positions. Installation Kits are available. The TMA block remains on the CNC spindle for normal tool changes, even if not using the Air Turbine Spindles™ as it will not interfere when using the main spindle.
