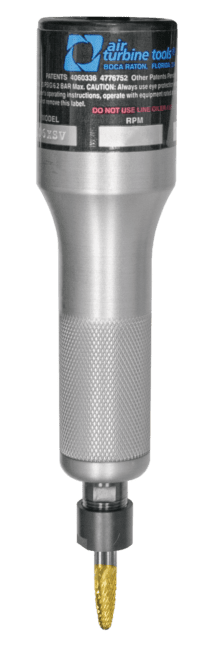

206XSV

Straight Hand Tool Series

1/4” / 6mm Capacity

Light and Quiet with ultra-low vibration magnitude at 1.43 m/s2 r.m.s. Now you can replace your heavy noisy vibrating tools requiring lubrication and maintenance. At 0.4 hp (0.30 kW) our patented double turbine 206XSV with slide valve for quick shut-off punches way above its weight of 8.2 oz (0.23 kg). Work with governed high speed which stays near rated speed under load at constant 50,000 rpm. You will get superb surface quality and virtually no stress or noise.
Optional dead man’s trigger switch for quick-shut off available with the 206XDM.

206XSV Specifications
Speed RPM40,00050,000
Power Rating hp (kW)0.3 (0.22)0.4 (0.3)
Inlet Air Pressure90 psi (6.2 bar)
Air Consumption Idle cfm (l/s)6 (2.83)
Air Consumption Working Flow cfm (l/s)7 (3.30) - 10 (4.27)
Air Hoses and Fittings Minimum Size6mm ID
Sound LevelLess Than 67 dBA
Max Shank Capacity1/4” (6mm)
Hand Tool Weight8.2oz (0.23kg)

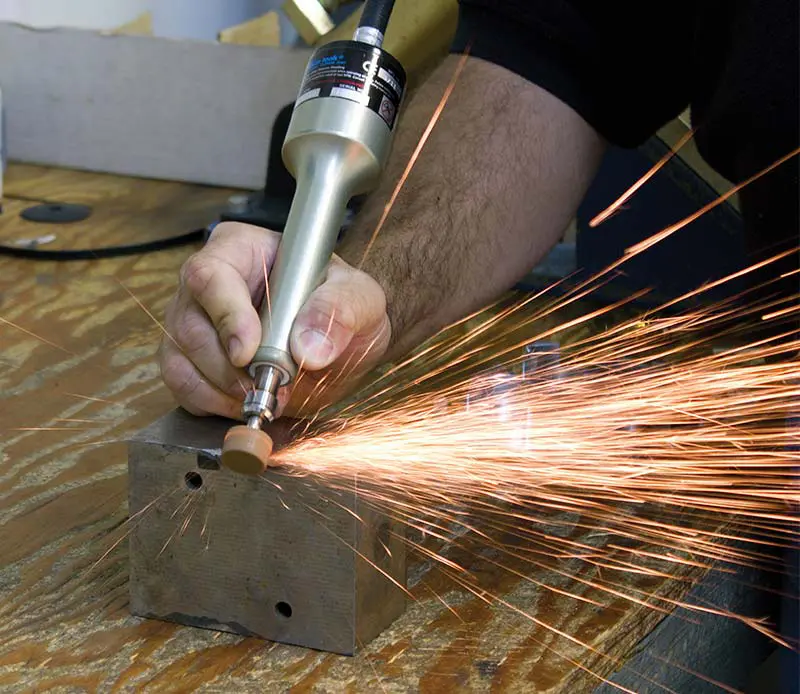

Don't Sacrifice Comfort and Safety for Performance!

Solve problems in hand operations with revolutionary Air Turbine Tools®. Reduce injury risk and repetitive stress on your hands and arm, and eliminate limitations on working time.

EAV = Time to reach Exposure Action Value

ELV = Exposure Limit Value

206XSV Vibration Statistics
Time to reach EAV 2.5 m/s² A(8) 24 hours, 28 minutes
Time to reach ELV 5 m/s² A(8)97 hours, 51 minutes
Vibration magnitude m/s² r.m.s 1.43

206XSV Dimensions

206XSV Dimensional Drawing
All fittings, couplings, and hoses must have a minimum of 6mm internal diameter.
206XSV Dimensions
A1.04” (26.37mm)D3.38” (85.87mm)
B1.00” (25.40mm)E4.29” (108.87mm)
C1.50” (38.10mm)F5.99” (152.17mm)

Equipment

Included Equipment

206XSV Hand Tool
Collet System (1/4” or 6mm)
Collet Wrenches
Rear Exhaust
5’ Air Supply Assembly with Slide Valve
1/4” NPT Air Supply Fitting

Standard Equipment

1/4” or 6mm collet standard – other sizes optional. Oil-free 90 psi (6.2 bar), clean, dry air supply required.

Accessories ModelsPart #
High Flow Filter30004
High Flow Filter / Regulator30003
High Flow Filter / Regulator / Extractor30008
5’ Air Supply Assembly w/Fitting for SV Models 32207
1/4"6mm
Speed RPMPart #Speed RPMPart #
40,0004298840,00042994
50,0004298950,00042995
1/4" w/break6mm w/break
Speed RPMPart #Speed RPMPart #
40,0004299140,00042997
50,0004299250,00042998

Video

No heat, no maintenance, no lubrication, no oil misting with 50,000 RPM on this Pencil Grinder

Service & Support

Support is always available from our technical team in the USA and Germany. Repair Service is available in Florida and Munich. Call our factory technicians at +1-561-994-0500 or email us at [email protected].
