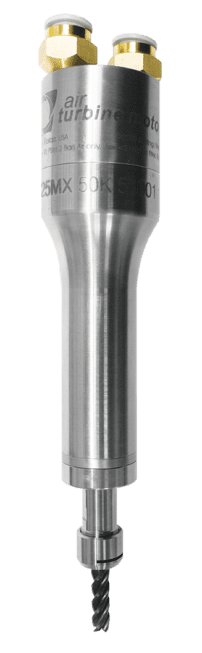

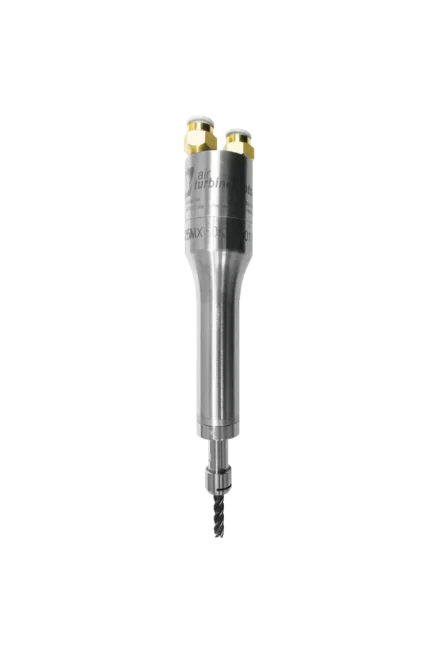

725MX
Sealed Steel Series
Despite its Ø 25 mm outside diameter, the 725MX has up to 0.40 HP to maintain your cutting tool’s high rotational speed at 40,000 or 50,000 RPM. The higher production rates you achieve with the 725MX will surprise you.
Air Turbine Motors® patented double direct drive in the 725MX does not get hot or vibrate. The air cools the sealed grease-packed bearings. The result is durability in 24/7 operation with no maintenance and no control system.
Mountable area of Ø 25 mm OD by 39 mm. Completely sealed with hose exhausts.
| 725MX Specifications | ||
| Speed | 40,000 RPM | 50,000 RPM |
| Power Rating | 0.3 HP (0.22 kW) | 0.4 HP (0.3 kW) |
| Inlet Air Pressure | 90 psi (6.2 bar) | |
| Air Consumption Idle | 5 CFM (2.36 L/s) | 6 CFM (2.83 L/s) |
| Air Consumption Working Flow | 7 CFM - 10 CFM (3.3 L/s - 4.72 L/s) |
|
| Air Hoses and Fittings Minimum Size | 6 mm internal diameter | |
| Sound Level | Less Than 78 dBA | |
| Max Shank Capacity | ER11 UP - 1/4” (6 mm) | |
| Motor Weight | 22 oz (0.62 kg) | |
| 725MX Specifications |
| Speed |
| Power Rating |
| Inlet Air Pressure |
| Air Consumption Idle |
| Air Consumption Working Flow |
| Air Hoses and Fittings Minimum Size |
| Sound Level |
| Max Shank Capacity |
| Motor Weight |
| 40,000 RPM | 50,000 RPM |
| 0.3 HP (0.22 kW) | 0.4 HP (0.3 kW) |
| 90 psi (6.2 bar) | |
| 5 CFM (2.36 L/s) | 6 CFM (2.83 L/s) |
| 7 CFM - 10 CFM (3.3 L/s - 4.72 L/s) |
|
| 6 mm internal diameter | |
| Less Than 78 dBA | |
| ER11 UP - 1/4” (6 mm) | |
| 22 oz (0.62 kg) | |
725MX Dimensions
All fittings, couplings, and hoses must have a minimum of 6 mm internal diameter.
| 725MX Dimensions | |||||
| A | 1.09” (27.61 mm) | C | 2.53” (64.38 mm) | E | Ø 1.57” (40 mm) |
| B | Ø 1.0” (25.4 mm) | D | 1.53” (38.98 mm) | F | 5.23” (132.84 mm) |
| 725MX Dimensions | |
| A | 1.09” (27.61 mm) |
| B | Ø 1.0” (25.4 mm) |
| C | 2.53” (64.38 mm) |
| D | 1.53” (38.98 mm) |
| E | Ø 1.57” (40 mm) |
| F | 5.23” (132.84 mm) |
Equipment
Included Equipment
► 725MX Motor
► ER11 UP Collet System (1/4” or 6 mm standard)
► Collet Wrenches
► Low Flow Filter Regulator / Extractor
► Air Hose
► Fittings
► Carrying Case
Standard Equipment
ER11 UP collet system. 1/4” or 6 mm standard, other sizes are available. Oil-free 90 psi / 6.2 bar clean, dry air supply required.
| Accessories Models | Part Numbers |
|---|---|
| Low Flow Filter Regulator / Extractor | 30006 |
| Hose 10 mm OD - 13’ | 30076 |
| Hose & Fitting - 8 mm O.D. - 5 mm I.D. - 12’ | 30041 |
| ER11 UP - 1/4" | ER11 UP - 6 mm | ||
|---|---|---|---|
| Speed RPM | Part Numbers | Speed RPM | Part Numbers |
| 40,000 | 70150 | 40,000 | 70151 |
| 50,000 | 70152 | 50,000 | 70153 |
