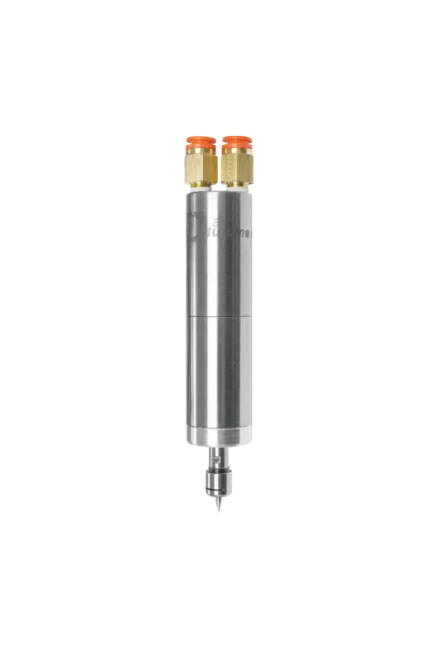

730MX
Sealed Steel Series
The popular 730MX is ideal for lab mills, lathes and swiss automation, and all fixture and robotic applications. Reach deep and run faster for accelerated production and cleaner cutting action.
Get finer finished surfaces with faster cycle times. Lower vibration and greater reliability result from fewer moving parts in this direct drive, oil free geared double turbine motor.
Mountable area of Ø 30 mm OD by 95 mm. Completely sealed with hose exhausts.
| 730MX Specifications | ||
| Speed | 50,000 RPM | 65,000 RPM |
| Power Rating | 0.2 HP (0.15 kW) | |
| Inlet Air Pressure | 90 psi (6.2 bar) | |
| Air Consumption Idle | 4 CFM (1.89 L/s) | |
| Air Consumption Working Flow | 6 CFM - 9 CFM (2.83 L/s - 4.24 L/s) |
|
| Air Hoses and Fittings Minimum Size | 5 mm internal diameter | |
| Sound Level | Less Than 78 dBA | |
| Max Shank Capacity | ER8 UP - 1/8” (3 mm) | |
| Motor Weight | 16 oz (0.45 kg) | |
| 730MX Specifications |
| Speed |
| Power Rating |
| Inlet Air Pressure |
| Air Consumption Idle |
| Air Consumption Working Flow |
| Air Hoses and Fittings Minimum Size |
| Sound Level |
| Max Shank Capacity |
| Motor Weight |
| 50,000 RPM | 65,000 RPM |
| 0.2 HP (0.15 kW) | |
| 90 psi (6.2 bar) | |
| 4 CFM (1.89 L/s) | |
| 6 CFM - 9 CFM (2.83 L/s - 4.24 L/s) |
|
| 5 mm internal diameter | |
| Less Than 78 dBA | |
| ER8 UP - 1/8” (3 mm) | |
| 16 oz (0.45 kg) | |
730MX Dimensions
All fittings, couplings, and hoses must have a minimum of 5mm internal diameter.
| 730MX Dimensions | |||||
| A | 0.91” (23.03 mm) | C | 0.6” (15.24 mm) | E | 4.34” (110.35 mm) |
| B | Ø 1.18” (30 mm) | D | 3.74” (95.11 mm) | F | 5.25” (133.35 mm) |
| 730MX Dimensions | |
| A | 0.91” (23.03 mm) |
| B | Ø 1.18” (30 mm) |
| C | 0.6” (15.24 mm) |
| D | 3.74” (95.11 mm) |
| E | 4.34” (110.35 mm) |
| F | 5.25” (133.35 mm) |
Equipment
Included Equipment
► 730MX Motor
► ER8 UP Collet System (1/8” or 3 mm standard)
► Collet Wrenches
► Low Flow Filter Regulator / Extractor
► Air Hose
► Fittings
► Carrying Case
Standard Equipment
ER8 UP collet system. 1/8” or 3 mm standard, other sizes are available. Oil-free 90 psi / 6.2 bar clean, dry air supply required.
| Accessories Models | Part Numbers |
|---|---|
| Low Flow Filter Regulator / Extractor | 30006 |
| Tube 8 mm O.D. - 5mm I.D. (order by foot) | 16506 |
| Hose & Fitting - 8 mm O.D. - 5 mm I.D. - 12’ | 30041 |
| ER8 UP - 1/8" | ER8 UP - 3 mm | ||
|---|---|---|---|
| Speed RPM | Part Numbers | Speed RPM | Part Numbers |
| 50,000 | 70004 | 50,000 | 70005 |
| 65,000 | 70008 | 65,000 | 70009 |
