825MX
Integrated MX Series

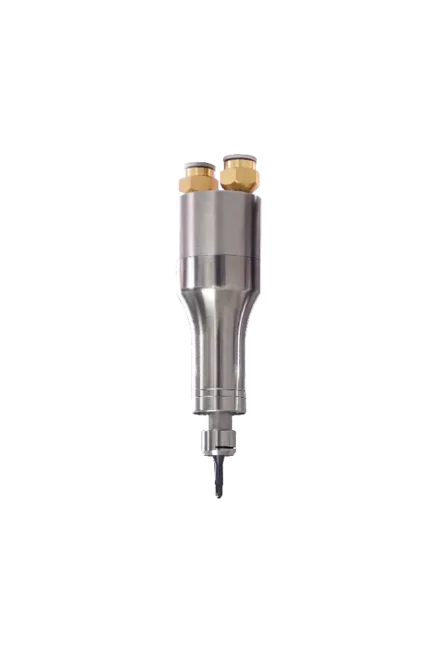

825MX
Despite its 25mm outside diameter, the 825MX has up to 0.40 hp to maintain your cutting tool’s high rotational speed at 40,000 or 50,000 rpm. The higher production rates you achieve with the 825MX will surprise you.
Air Turbine Live Tools® patented double direct drive in the 825MX does not get hot or vibrate. The air cools the sealed grease-packed bearings. The result is durability in 24/7 operation with no maintenance and no control system.
Mountable area of 25mm by 12.7mm. Completely sealed with hose exhausts.
| 825MX Specifications | ||
| Speed RPM | 40,000 | 50,000 |
| Power Rating hp (Kw) | 0.30 (0.22) | 0.40 (0.30) |
| Inlet Air Pressure | 90 PSI (6.2 Bar) | |
| Air Consumption Idle cfm (l/s) | 5 (2.36) | 6 (2.83) |
| Air Consumption Working Flow (l/s) | 7 (3.30) - 10 (4.72) | |
| Air Hoses and Fittings Minimum Size | 6mm ID | |
| Sound Level | Less Than 78 dBA | |
| Max Shank Capacity | ER 11 - 1/4” (6mm) | |
Keep up with Production Pressure with 80,000 RPM Air Turbine Live Tools®
Drop in the 825MX Series for High Speed in Cut.
1
No control system, no lubricator, no gears or high frequency brushes to burn up.
2
No Heat. Direct Drive Reliability.
3
Just connect 90 PSI, 6.2 Bar dry clean air supply and mill on any Swiss Automatic.
4
No Wiring or Lubrication.
825MX Dimensions
All fittings, couplings, and hoses must have a minimum of 6mm internal diameter.
| 825MX Dimensions | |
| A | 1.09” (27.61mm) |
| B | Ø 1.00” (25.40mm) |
| C | 1.5" (38.1mm) |
| D | 0.5" (12.7mm) |
| E | Ø 1.57" (40.00mm) |
| F | 4.00" (101.6mm) |
Equipment
Included Equipment
► Air Turbine Live Tool®
► High Flow Filter / Regulator / Extractor (p/n #30008)
► Collet
► Wrenches
► Hose
► Fittings
► Carrying Case
Standard Equipment
ER11 UP collet system (1/4” or 6mm collet standard – other sizes optional. Oil free 90 psi / 6.2 bar, clean, dry air supply required.
| Accessories Models | Part # |
|---|---|
| High Flow Filter / Regulator / Extractor | 30008 |
| Tube 8mm O.D. - 5mm I.D. (order by foot) | 16506 |
| Hose & Fitting - 8mm O.D. - 5mm I.D. - 12’ | 30041 |
| ER11 - 1/4” | ER11 - 6mm | ||
|---|---|---|---|
| Speed RPM | Part # | Speed RPM | Part # |
| 40,000 | 70154 | 40,000 | 70156 |
| 50,000 | 70155 | 50,000 | 70157 |
