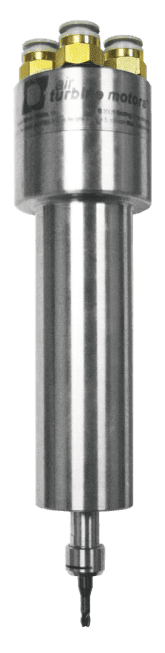

740XP
Sealed Steel Series
Suitable for heavier applications, the patented double turbine 740XP generates 0.76 HP and 50,000 RPM. The 740XP’s governor keeps your speed high under load. This is a low vibration motor with just 2 moving parts and air-cooled ceramic bearings for reliable operation 24/7.
Versatile – for finishing, milling, and drilling. Accelerate your production and cut your repair costs and downtime. Eliminate control systems and maintenance. Ideal for lathes, swiss automatics, robotics, and finishing. Specify angular bearings for drilling.
Mountable area of Ø 40 mm OD by 82 mm. Completely sealed with hose exhausts.
| 740XP Specifications | |||
| Speed | 30,000 RPM | 40,000 RPM | 50,000 RPM |
| Power Rating | 0.72 HP (0.54 kW) | 0.74 HP (0.55 kW) | 0.76 HP (0.57 kW) |
| Inlet Air Pressure | 90 psi (6.2 bar) | ||
| Air Consumption Idle | 16 CFM (7.55 L/s) | 20 CFM (9.44 L/s) | |
| Air Consumption Working Flow | 17 CFM - 45 CFM (8.02 L/s - 21.2 L/s) |
||
| Air Hoses and Fittings Minimum Size | 8 mm internal diamter | ||
| Sound Level | Less Than 78 dBA | ||
| Max Shank Capacity | ER11 UP - 1/4” (6 mm) | ||
| Motor Weight | 58 oz (1.64 kg) | ||
| 740XP Specifications |
| Speed |
| Power Rating |
| Inlet Air Pressure |
| Air Consumption Idle |
| Air Consumption Working Flow |
| Air Hoses and Fittings Minimum Size |
| Sound Level |
| Max Shank Capacity |
| Motor Weight |
| 30,000 RPM | 40,000 RPM | 50,000 RPM |
| 0.72 HP (0.54 kW) | 0.74 HP (0.55 kW) | 0.76 HP (0.57 kW) |
| 90 psi (6.2 bar) | ||
| 16 CFM (7.55 L/s) | 20 CFM (9.44 L/s) | |
| 17 CFM - 45 CFM (8.02 L/s - 21.2 L/s) |
||
| 8 mm internal diamter | ||
| Less Than 78 dBA | ||
| ER11 UP - 1/4” (6 mm) | ||
| 58 oz (1.64 kg) | ||

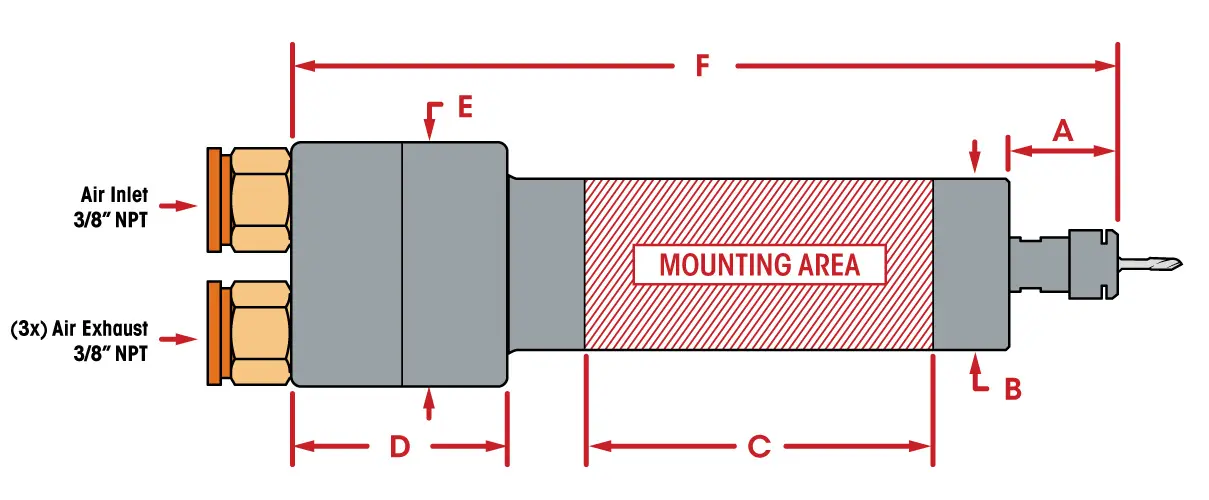

740XP Dimensions
All fittings, couplings, and hoses must have a minimum of 8 mm internal diameter.
| 740XP Dimensions | |||||
| A | 1.09” (27.69 mm) | C | 3.21” (81.52 mm) | E | Ø 2.25” (57.12 mm) |
| B | Ø 1.57” (40 mm) | D | 1.99” (50.51 mm) | F | 7.69” (195.33 mm) |
| 740XP Dimensions | |
| A | 1.09” (27.69mm) |
| B | Ø 1.57” (40.00mm) |
| C | 3.21” (81.52mm) |
| D | 1.99” (50.51mm) |
| E | Ø 2.25” (57.12mm) |
| F | 7.69” (195.33mm) |
Equipment
Included Equipment
► 740XP Motor
► ER11 UP Collet System (1/4” or 6 mm standard)
► Collet Wrenches
► High Flow Filter / Regulator / Extractor with 1/2” NPT
► Air Hose
► Fittings
► Carrying Case
Standard Equipment
ER11 UP collet system. 1/4” or 6 mm standard, other sizes are available. Oil-free 90 psi / 6.2 bar clean, dry air supply required.
| Accessories Models | Part Numbers |
|---|---|
| High Flow Filter / Regulator / Extractor with 1/2” NPT | 30084 |
| Tube 12 mm O.D. - 10 mm I.D. (order by foot) | 16509 |
| Hose & Fitting - 12 mm O.D. - 10 mm I.D. - 12’ | 30045 |
| ER11 UP - 1/4" | ER11 UP - 6 mm | ||
|---|---|---|---|
| Speed RPM | Part Numbers | Speed RPM | Part Numbers |
| 30,000 | 70052 | 30,000 | 70053 |
| 40,000 | 70054 | 40,000 | 70055 |
| 50,000 | 70056 | 50,000 | 70057 |
