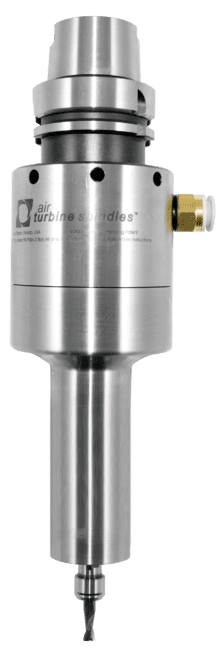

650X Extended Barrel CNC Spindle Series
Integration of the popular HSK-A63 tool holder into the 650XL spindle housing delivers constant high speed with ultra-low vibration and improves accuracy and rigidity. Rigid steel construction in one piece with the tool holder also cuts the height of the unit. With Air Turbine Spindles® patented double turbine’s extra power the 1.4 hp (1.04 kW) motor maintaining stable high speed and torque under load. The powerful 650XLHSK-A63 (100mm) with the reach for deep pockets, robotic face or edge milling, or finishing operations at 25,000, 30,000, or 40,000 rpm. Plenty of power to speed up your inches cut per minute. High cutting speeds are maintained at the periphery of your end mill or burr using the 650’s unique governed performance to achieve a faster cycle time, a cleaner finished surface and more production on your CNC. X = Double Turbine Power. No Duty Cycle.
|650XLHSK-A63 (100mm) Specifications|
|Power Rating hp (Kw)||1.2 (0.90)||1.3 (.98)||1.4 (1.04)|
|Inlet Air Pressure||90 PSI (6.2 Bar)|
|Air Consumption Idle cfm (l/s)||16 (7.56)||17 (8.02)||18 (8.49)|
|Air Consumption Working Flow (l/s)||19 (8.97) - 40 (18.89)|
|Sound Level||Less Than 78 dBA|
|Max Shank Capacity||ER 11 - 1/4” (6mm)|
|Spindle Weight||147 oz (4.18 kg)|
Reach into deep pockets with 1.4 HP with the Air Turbine Extended Barrel CNC Spindle Series

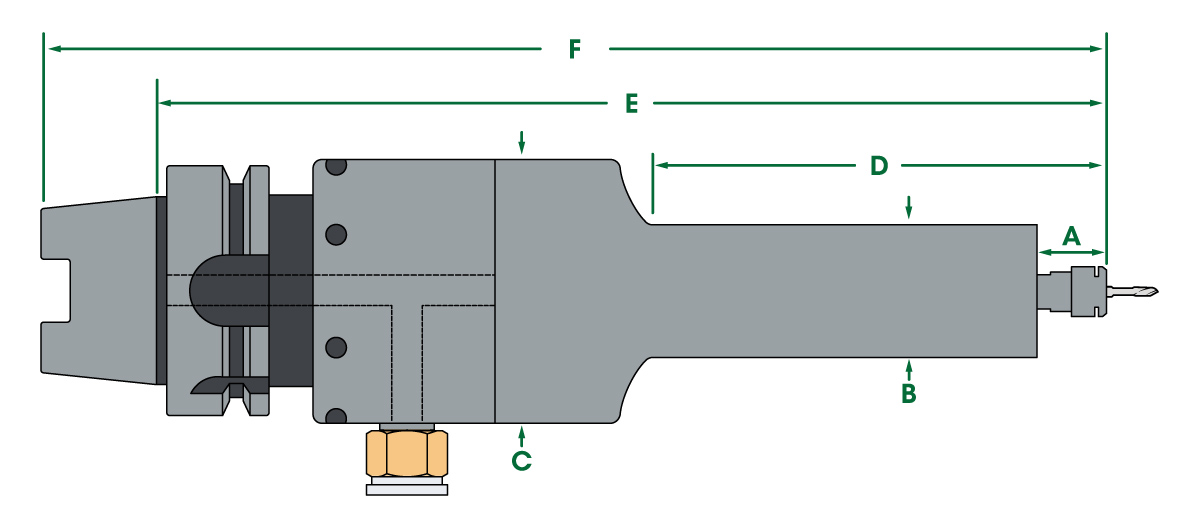

650XLHSK-A63 100mm Dimensions
ER 11 collet system (1/4” or 6mm collet standard – other sizes optional). 3/4” or 20mm shank standard (Metric Shank comes with metric collet, Inch Shank with inch collet). Oil-free 90 psi / 6.2 bar, clean, dry air supply required.
|Accessories Models||Part #|
|High Flow Filter / Regulator / Extractor with 1/2” NPT||30084|
|Tube 16mm O.D. - 10mm I.D. (order by foot)||16516|
|Hose & Fitting - 16mm O.D. - 10mm I.D. - 12’||30046|
We retrofit any CNC machine to mill at a constant high speed 24/7 – so any CNC can be a high-speed machine. This includes, but isn’t limited to DMG MORI, Haas, Fanuc Robodrill, Doosan, Hermle, Hurco, GROB, Brother Okuma, Makino and Mazak. Easy installation using selectable air feed inlets – choose side inlet NPT / Stop Block or center through shank/tool holder air feed. HSK, CAT, BT, and DIN Toolholder options are available. Learn more about Air Turbine Spindles on your CNC Machine by visiting their page at the links below.
Automatically Tool Change on your CNC
Automatically load Air Turbine Spindles® in CNC machines with our patented wrap-around Toolchanger Mounting Assembly (TMA). This option allows CNC tool-changers to automatically load/unload our family of high-speed precision spindles using a proprietary collar system and mounting block or ring around the CNC spindle integrated to the right side of the CNC spindle in minutes.
For machines that have an air blast line or coolant channel that can be used to supply sufficient CFM / L/s airflow volume; Air Turbine Spindles can tool change without the Toolchanger Mounting Assembly. All HSK spindles can be used with center air feed if air supply line has sufficient ID.
Screw In Mounting Block
Two Piece Ring and Block
Mounting blocks or rings compatible with Haas, Hurco, Doosan, Robodrill, Hardinge, DMG, Brother, Okuma, and all other CNC’s are available. We are accustomed to developing custom solutions for any CNC. A Universal Block can be provided for drilling your CNC screw positions. Installation Kits are available. The TMA block remains on the CNC spindle for normal tool changes, even if not using the Air Turbine Spindles™ as it will not interfere when using the main spindle.
TMA Assembly Includes
- Mounting block or ring assembly
- Spindle manifold collar with adjustable height connector to block
Auto Tool Change your Air Turbine Spindle® with Through Spindle Air
Auto Tool Change your Air Turbine Spindle® with the Tool Changer Mounting Assembly
|ER11- 1/4"||ER11- 6mm|
|Speed RPM||Part #||Speed RPM||Part #|
