Extended Barrel Series

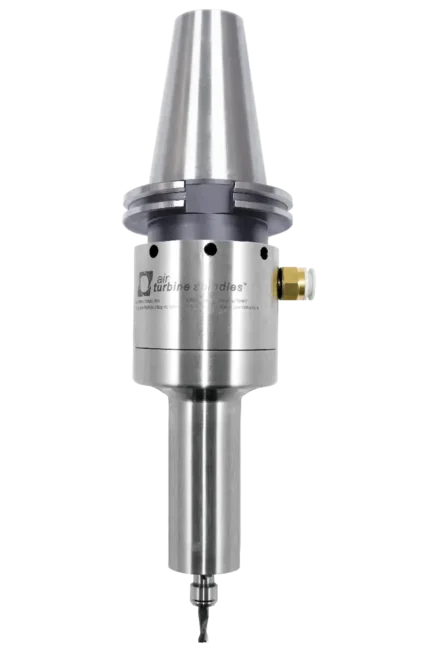

The robust, long body 650LCAT50 (100mm) delivers governed constant high speed and power under load – 25,000 to 40,000 rpm, < 0.88 hp (0.66 kW) with double front ceramic bearings. The 650L (100mm) Series is ideal for heavier duty applications and milling hard materials in corners in deep pockets. The governor-controlled turbine maintains rated high speed, optimizing tool performance and life. Effective in all materials, including tool steel, titanium, and ceramic. Ultra low vibration and no heat in 24/7 operation. Selectable rear or side air feed on each spindle. Automatic Loading from the magazine on all machines
|650LCAT50 (100mm) Specifications|
|Power Rating hp (Kw)||0.80 (0.60)||0.83 (0.62)||0.88 (0.66)|
|Inlet Air Pressure||90 PSI (6.2 Bar)|
|Air Consumption Idle cfm (l/s)||13 (6.1)||14 (6.6)||14 (6.6)|
|Air Consumption Working Flow (l/s)||14 (6.60) - 35 (16.5)|
|Sound Level||Less Than 78 dBA|
|Max Shank Capacity||ER 11 - 1/4” (6mm)|
|Spindle Weight||141.4 oz (4.01 kg)|
650LCAT50 100mm Dimensions
ER 11 collet system (1/4” or 6mm collet standard – other sizes optional). 3/4” or 20mm shank standard (Metric Shank comes with metric collet, Inch Shank with inch collet). Oil-free 90 psi / 6.2 bar, clean, dry air supply required.
|Accessories Models||Part #|
|High Flow Filter / Regulator / Extractor||30008|
|Tube 12mm O.D. - 8mm I.D. (order by foot)||16509|
|Hose & Fitting - 12mm O.D. - 8mm I.D. - 12’||30045|
We retrofit any CNC machine to mill at a constant high speed 24/7 – so any CNC can be a high-speed machine. This includes, but isn’t limited to DMG MORI, Haas, Fanuc Robodrill, Doosan, Hermle, Hurco, GROB, Brother Okuma, Makino and Mazak. Easy installation using selectable air feed inlets – choose side inlet NPT / Stop Block or center through shank/tool holder air feed. HSK, CAT, BT, and DIN Toolholder options are available. Learn more about Air Turbine Spindles on your CNC Machine by visiting their page at the links below.
Automatically Tool Change on your CNC
Automatically load Air Turbine Spindles® in CNC machines with our patented wrap-around Toolchanger Mounting Assembly (TMA). This option allows CNC tool-changers to automatically load/unload our family of high-speed precision spindles using a proprietary collar system and mounting block or ring around the CNC spindle integrated to the right side of the CNC spindle in minutes.
Screw In Mounting Block
Two Piece Ring and Block
Mounting blocks or rings compatible with Haas, Hurco, Doosan, Robodrill, Hardinge, DMG, Brother, Okuma, and all other CNC’s are available. We are accustomed to developing custom solutions for any CNC. A Universal Block can be provided for drilling your CNC screw positions. Installation Kits are available. The TMA block remains on the CNC spindle for normal tool changes, even if not using the Air Turbine Spindles™ as it will not interfere when using the main spindle.
TMA Assembly Includes
- Mounting block or ring assembly
- Spindle manifold collar with adjustable height connector to block
Auto Tool Change your Air Turbine Spindle® with the Tool Changer Mounting Assembly
|ER11- 1/4"||ER11- 6mm|
|Speed RPM||Part #||Speed RPM||Part #|
