625XNS

625X CNC Spindle Series

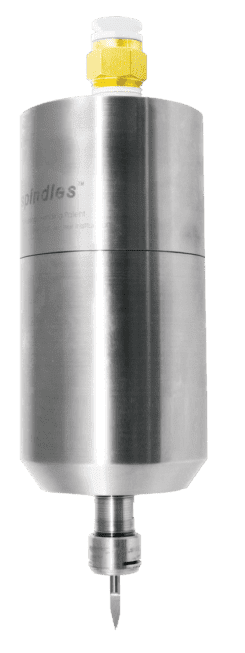

The 625XNS produces superb accuracy and fast results. Rated governed speeds available are 30,000, 40,000, and 50,000 rpm and the power is 0.76 hp (0.57 kW).The 625XNS features no shank and air feed from the rear position. Drop-in 57mm fixture ready to mill, finish or drill at high speed. Front ends sealed for wet environments (rear exhaust not sealed). Compact and powerful Air Turbine Spindles® 625 unit delivers patented constant governed high-speed operation under load cuts faster and cleaner – speeding up cycle times and achieving major savings. Fewer moving parts mean less vibration and less repairs. There are no gears or vanes to lubricate or burn up and the ceramic grease-packed bearings are durable. Specify angular bearings for drilling. Totally oil-free operation eliminates workpiece contamination and oil lubrication using 90 PSI (6.2 Bar) dry clean oil-free air. X = Double Turbine Power. No Duty Cycle.

625XNS Specifications
Speed RPM30,00040,00050,000
Power Rating hp (Kw)0.72 (0.54) 0.74 (0.55)0.76 (0.57)
Inlet Air Pressure90 PSI (6.2 Bar)
Air Consumption Idle cfm (l/s)16 (7.55)20 (9.44)
Air Consumption Working Flow (l/s)22 (10.38) - 30 (14.16)
Air Hoses and Fittings Minimum Size8mm ID
Sound LevelLess Than 78 dBA
Max Shank CapacityER 11 - 1/4” (6mm)
Spindle Weight60 oz (1.70 kg)

Add These High Speed Spindles to Your CNC for 5 X Faster Production

Retrofit Any CNC with High Speed

We retrofit any CNC machine to mill at a constant high speed 24/7 – so any CNC can be a high-speed machine. This includes, but isn’t limited to DMG MORI, Haas, Fanuc Robodrill, Doosan, Hermle, Hurco, GROB, Brother Okuma, Makino and Mazak. Easy installation using selectable air feed inlets – choose side inlet NPT / Stop Block or center through shank/tool holder air feed. HSK, CAT, BT, and DIN Toolholder options are available. Learn more about Air Turbine Spindles on your CNC Machine by visiting their page at the links below.

625XNS Dimensions

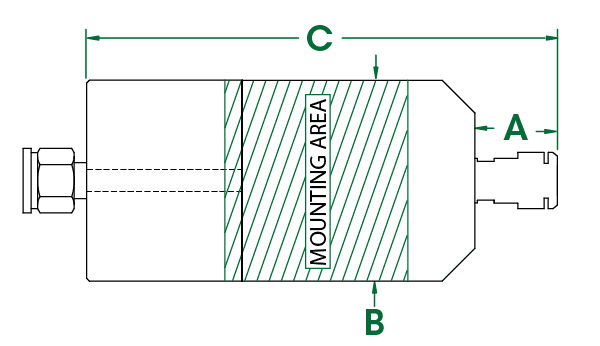

625XNS Dimensional Drawing
All fittings, couplings, and hoses must have a minimum of 8mm internal diameter.
625XNS Dimensions
A0.87” (22mm)
BØ 2.24” (57mm)
C5.55” (141mm)
D2.30” (58mm)

Equipment

Included Equipment

625XNS Spindle
Combo Filter Extractor
ER 11 UP Collet System (1/4” or 6mm)
Collet Wrenches
Air Hose
Fittings
Plug (For alternate air inlet not in use.)
Coolant Guard
Carrying Case

Standard Equipment

ER 11 UP Collet System (1/4” or 6mm). 3/4” or 20mm shank standard (Metric Shank comes with metric collet, Inch Shank with inch collet). Oil-free 90 psi / 6.2 bar, clean, dry air supply required.

Accessories ModelsPart #
High Flow Filter / Regulator / Extractor30008
Tube 12mm O.D. - 8mm I.D. (order by foot)16509
Hose & Fitting - 12mm O.D. - 8mm I.D. - 12’ 30045
ER11- 1/4"ER11- 6mm
Speed RPMPart #Speed RPMPart #
30,0006455830,00064559
40,0006456040,00064561
50,0006456250,00064563

Videos

M4S Micro Demo - 40,000 RPM, 20 IPM in 45HRc on HAAS

Haas CNC Main Spindle v. The Air Turbine CNC Spindle

CNC Spindle Milling Steel at 5000 mm/min on DMG Mori at 50,000 rpm and 0.76 hp

50,000 RPM CNC Spindle on Hermle Engraves Aluminum Elephant

C/T Reduced by 25 Minutes with 50,000 rpm! Pocketing Brass with Air Turbine CNC Milling Spindles!

Steel Milling at 2,600 mm/min - Reduce your Cycle Times with the Air Turbine Pneumatic Spindle

Engraving at 65,000 RPM on Haas VF9 CNC by Air Turbine Spindles®

Service & Support

Support is always available from our technical team in the USA, Germany and Mexico. Repair Service is available in Florida and Munich.

Call our factory technicians at +1-561-994-0500 or email us at [email protected].
