625XJS
625X CNC Spindle Series

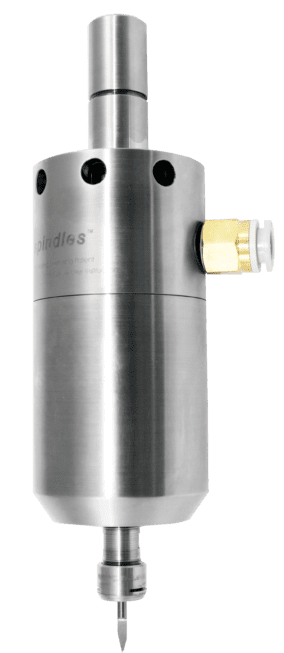

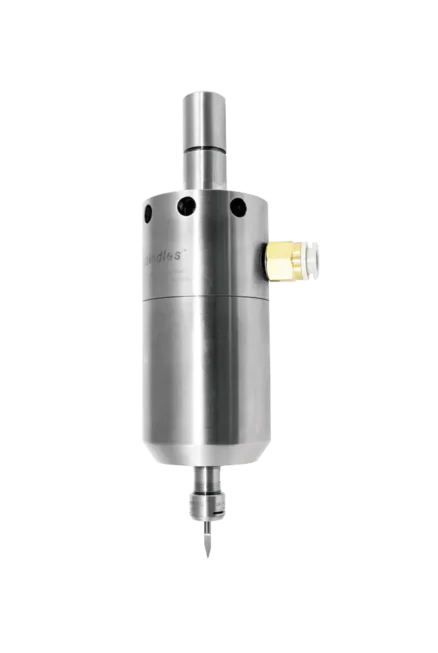

The patented double turbine 625XJS (3/4” / 20 mm straight shank) delivers constant high speeds under load – 30,000 to 50,000 RPM, < 0.76 HP (0.57 kW). Speed up your cycle times with this compact and powerful spindle. Ideal for contouring, mold making, milling, finishing, and drilling with small tools. Governor control maintains constant high speed and power under load. Direct drive means no heat, no duty cycle, and super reliability. Selectable rear or side air feed.
| 625XJS Specifications | |||
| Speed | 30,000 RPM | 40,000 RPM | 50,000 RPM |
| Power Rating | 0.72 HP (0.54 kW) | 0.74 HP (0.55 kW) | 0.76 HP (0.57 kW) |
| Inlet Air Pressure | 90 psi (6.2 bar) | ||
| Air Consumption Idle | 16 CFM (7.55 L/s) | 20 CFM (9.44 L/s) | |
| Air Consumption Working Flow | 22 CFM - 30 CFM (10.38 L/s - 14.16 L/s) |
||
| Air Hoses and Fittings Minimum Size | 8 mm internal diameter | ||
| Sound Level | Less Than 78 dBA | ||
| Max Shank Capacity | ER11 UP - 1/4” (6 mm) | ||
| Spindle Weight | 64 oz (1.81 kg) | ||
| 625XJS Specifications |
| Speed |
| Power Rating |
| Inlet Air Pressure |
| Air Consumption Idle |
| Air Consumption Working Flow |
| Air Hoses and Fittings Minimum Size |
| Sound Level |
| Max Shank Capacity |
| Spindle Weight |
| 30,000 RPM | 40,000 RPM | 50,000 RPM |
| 0.72 HP (0.54 kW) | 0.74 HP (0.55 kW) | 0.76 HP (0.57 kW) |
| 90 psi (6.2 bar) | ||
| 16 CFM (7.55 L/s) | 20 CFM (9.44 L/s) | |
| 22 CFM - 30 CFM (10.38 L/s - 14.16 L/s) |
||
| 8 mm internal diameter | ||
| Less Than 78 dBA | ||
| ER11 UP - 1/4” (6 mm) | ||
| 64 oz (1.81 kg) | ||
Retrofit Any CNC with High Speed
We retrofit any CNC machine to mill at a constant high speed 24/7 – so any CNC can be a high-speed machine. This includes, but isn’t limited to DMG MORI, Haas, Fanuc Robodrill, Doosan, Hermle, Hurco, GROB, Brother Okuma, Makino and Mazak. Easy installation using selectable air feed inlets – choose side inlet NPT / Stop Block or center through shank/tool holder air feed. HSK, CAT, BT, and DIN Toolholder options are available. Learn more about Air Turbine Spindles on your CNC Machine by visiting their page at the links below.
Add These High Speed Spindles to Your CNC for 5 X Faster Production

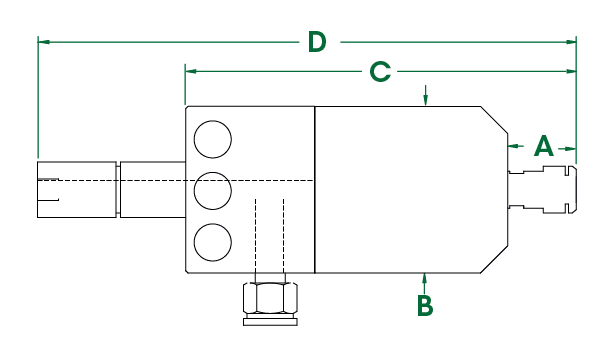

625XJS Dimensions
All fittings, couplings, and hoses must have a minimum of 8 mm internal diameter.
| 625XJS Dimensions | |||
| A | 1.0" (25.4 mm) | C | 5.44" (138.18 mm) |
| B | Ø 2.24" (56.7 mm) | D | 7.44" (177.98 mm) |
| 625XJS Dimensions | |
| A | 1.0" (25.4 mm) |
| B | Ø 2.24" (56.7 mm) |
| C | 5.44" (138.18 mm) |
| D | 7.44" (177.98 mm) |
Equipment
Included Equipment
Standard Equipment
ER11 UP collet system. 1/4” or 6 mm standard, other sizes are available. Oil-free 90 psi / 6.2 bar clean, dry air supply required.
| Accessories Models | Part Numbers |
|---|---|
| High Flow Filter / Regulator / Extractor | 30008 |
| Tube 12 mm O.D. - 8 mm I.D. (order by foot) | 16509 |
| Hose & Fitting - 12 mm O.D. - 8 mm I.D. - 12’ | 30045 |
| ER11 UP - 1/4" | ER11 UP - 6 mm | ||
|---|---|---|---|
| Speed RPM | Part Numbers | Speed RPM | Part Numbers |
| 30,000 | 63026 | 30,000 | 63027 |
| 40,000 | 63028 | 40,000 | 63029 |
| 50,000 | 63312 | 50,000 | 63313 |
Videos
M4S Micro Demo - 40,000 RPM, 20 IPM in 45HRc on HAAS
Haas CNC Main Spindle v. The Air Turbine CNC Spindle

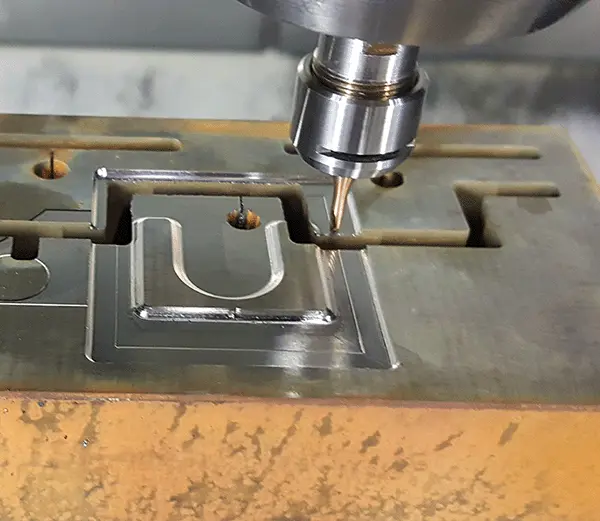

CNC Spindle Milling Steel at 5000 mm/min on DMG Mori at 50,000 rpm and 0.76 hp
50,000 RPM CNC Spindle on Hermle Engraves Aluminum Elephant
C/T Reduced by 25 Minutes with 50,000 rpm! Pocketing Brass with Air Turbine CNC Milling Spindles!
Steel Milling at 2,600 mm/min - Reduce your Cycle Times with the Air Turbine Pneumatic Spindle
Engraving at 65,000 RPM on Haas VF9 CNC by Air Turbine Spindles®
Service & Support
Support is always available from our technical team in the USA, Germany and Mexico. Repair Service is available in Florida and Munich.
Call our factory technicians at +1-561-994-0500 or email us at [email protected].
