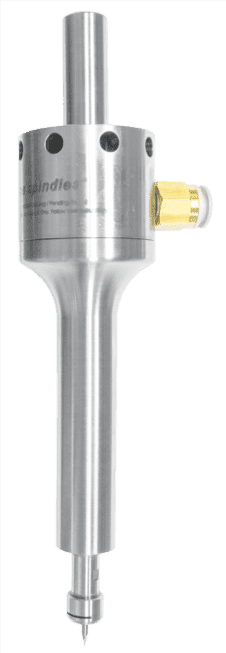

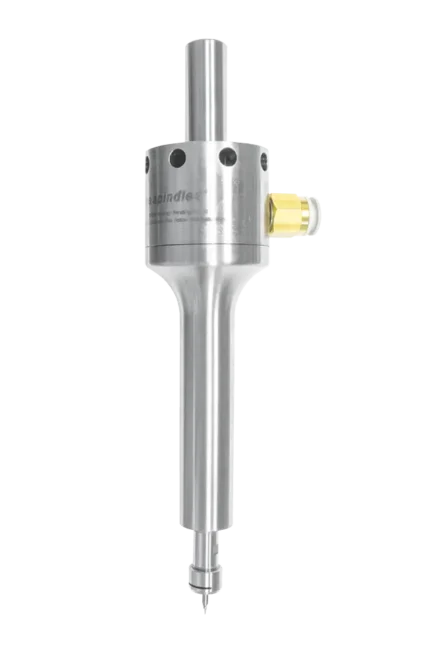

625LJS 100mm

Extended Barrel Series

With vibration at just 0.4mm/sec the 625LJS (100mm) produces superb accuracy and fast results. The powerful 625LJS (100mm) with the reach for deep pockets, robotic face or edge milling, or finishing operations up to 0.50 hp / 0.37 kW at 30,000, 40,000 or 50,000 rpm. Compact and powerful Air Turbine Spindles® 625 unit delivers patented constant governed high-speed operation under load cuts faster and cleaner – speeding up cycle times and achieving major savings. Fewer moving parts means less vibration and fewer repairs. There are no gears or vanes to lubricate or burn up and the ceramic grease-packed bearings are durable. Totally oil-free operation eliminates workpiece contamination and oil lubrication using 90 PSI (6.2 Bar) dry clean oil-free air. The JS version is easy to mount with your selection of tool holder configuration and two selectable air inlet options (through shank or side air feed NPT) (patent pending). No Duty Cycle.

ER11- 1/4″ ER11- 6mm
Speed RPM Part # Speed RPM Part #
30,000 64546 30,000 64547
40,000 64548 40,000 64549
50,000 64550 50,000 64551

625LJS 100mm Specifications
Speed RPM 30,000 40,000 50,000
Power Rating hp (Kw) 0.40 (0.30) 0.45 (0.34) 0.50 (0.37)
Inlet Air Pressure

90 PSI (6.2 Bar)
Air Consumption Idle cfm (l/s) 10.5 (4.9) 11 (5.2) 11 (5.2)
Air Consumption Working Flow (l/s) 11 (5.2) – 20 (9.4)
Sound Level Less Than 78 dBA
Max Shank Capacity ER 11 – 1/4” (6mm)
Spindle Weight 58 oz (1.64 kg)

A 1.00” (25mm)
B 1.00” (25mm)
C 2.25” (57mm)
D 4.80” (122mm)
E 7.86” (200mm)
F 9.86” (250mm)

Accessories Models Part #
High Flow Filter / Regulator / Extractor 30008
Tube 10mm O.D. – 6.5mm I.D. (order by foot) 16508
Hose & Fitting – 10mm O.D. – 6.5mm I.D. – 12’ 30043

Spindle, combo filter extractor (p/n #30008), collet, wrenches, hose and fittings, plug (for alternate air inlet not in use), and carrying case. ER 11 collet system (1/4” or 6mm collet standard – other sizes optional). 3/4” or 20mm shank standard (Metric Shank comes with metric collet, Inch Shank with inch collet). Oil-free 90 psi / 6.2 bar, clean, dry air supply required.

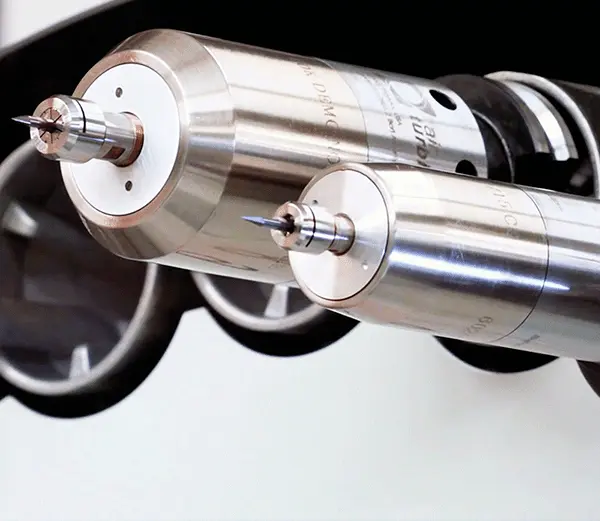

We retrofit any CNC machine to mill at a constant high speed 24/7 – so any CNC can be a high-speed machine. This includes, but isn’t limited to DMG MORI, Haas, Fanuc Robodrill, Doosan, Hermle, Hurco, GROB, Brother Okuma, Makino and Mazak. Easy installation using selectable air feed inlets – choose side inlet NPT / Stop Block or center through shank/tool holder air feed. HSK, CAT, BT, and DIN Toolholder options are available.

Learn more about Air Turbine Spindles on your CNC Machine by visiting their page at the links below.



Service & Support

Support is always available from our technical team in the USA, Germany and Mexico. Repair Service is available in Florida and Munich.

Call our factory technicians at +1-561-994-0500 or email us at [email protected].
