625 Extended Barrel CNC Spindle Series
Integration of the popular DIN30 tool holder into the 625S spindle housing delivers constant high speed with ultra-low vibration and improves accuracy and rigidity. The powerful 625LDIN30 (50mm) is designed for close workpiece operations and machines with very short z-axis travel. The 625LDIN30 (50mm) delivers patented constant governed high speed operation under load up to 0.50 hp / 0.37 kW at 30,000, 40,000 or 50,000 rpm. At these high speeds, tool coatings achieve the required temperatures to extend endmill life saving money as well as accelerating production. Air Turbine Spindles® patented constant governed high-speed operation under load cuts faster and cleaner – speeding up cycle times and achieving major savings. Faster cutting with small end mills and drills, finishing or polishing with super accuracy. High-speed cutting improves finish quality and accuracy with a fast light pass of your tool. No Duty Cycle.

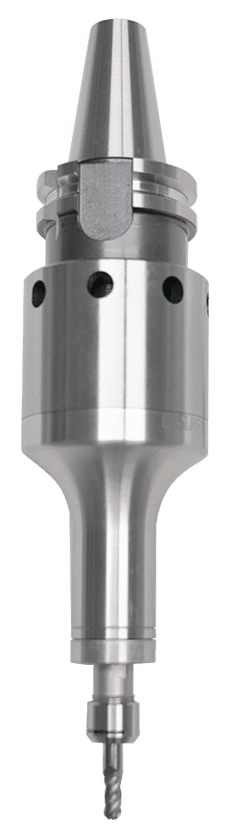

|625LDIN30 50mm Specifications|
|Power Rating hp (Kw)||0.40 (0.30)||0.45 (0.34)||0.50 (0.37)|
|Inlet Air Pressure||90 PSI (6.2 Bar)|
|Air Consumption Idle cfm (l/s)||10.5 (4.9)||11 (5.2)||11 (5.2)|
|Air Consumption Working Flow (l/s)||11 (5.2) - 20 (9.4)|
|Sound Level||Less Than 78 dBA|
|Max Shank Capacity||ER 11 - 1/4” (6mm)|
|Spindle Weight||84 oz (2.38 kg)|
Reach into deep pockets with 1.4 HP with the Air Turbine Extended Barrel CNC Spindle Series
625LDIN30 50mm Dimensions
ER 11 collet system (1/4” or 6mm collet standard – other sizes optional). 3/4” or 20mm shank standard (Metric Shank comes with metric collet, Inch Shank with inch collet). Oil-free 90 psi / 6.2 bar, clean, dry air supply required.
|Accessories Models||Part #|
|High Flow Filter / Regulator / Extractor||30008|
|Tube 10mm O.D. - 6.5mm I.D. (order by foot)||16508|
|Hose & Fitting - 10mm O.D. - 6.5mm I.D. - 12’||30043|

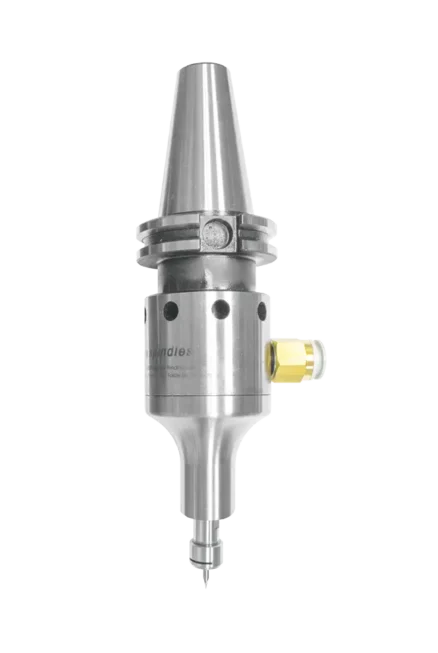

We retrofit any CNC machine to mill at a constant high speed 24/7 – so any CNC can be a high-speed machine. This includes, but isn’t limited to DMG MORI, Haas, Fanuc Robodrill, Doosan, Hermle, Hurco, GROB, Brother Okuma, Makino and Mazak. Easy installation using selectable air feed inlets – choose side inlet NPT / Stop Block or center through shank/tool holder air feed. HSK, CAT, BT, and DIN Toolholder options are available. Learn more about Air Turbine Spindles on your CNC Machine by visiting their page at the links below.
Automatically Tool Change on your CNC
Automatically load Air Turbine Spindles® in CNC machines with our patented wrap-around Toolchanger Mounting Assembly (TMA). This option allows CNC tool-changers to automatically load/unload our family of high-speed precision spindles using a proprietary collar system and mounting block or ring around the CNC spindle integrated to the right side of the CNC spindle in minutes.
Screw In Mounting Block
Two Piece Ring and Block
Mounting blocks or rings compatible with Haas, Hurco, Doosan, Robodrill, Hardinge, DMG, Brother, Okuma, and all other CNC’s are available. We are accustomed to developing custom solutions for any CNC. A Universal Block can be provided for drilling your CNC screw positions. Installation Kits are available. The TMA block remains on the CNC spindle for normal tool changes, even if not using the Air Turbine Spindles™ as it will not interfere when using the main spindle.
TMA Assembly Includes
- Mounting block or ring assembly
- Spindle manifold collar with adjustable height connector to block
Auto Tool Change your Air Turbine Spindle® with the Tool Changer Mounting Assembly
|ER11- 1/4"||ER11- 6mm|
|Speed RPM||Part #||Speed RPM||Part #|
Aluminum Engraving at 5,000 mm/min - The CNC Spindle that DRASTICALLY Reduces Cycle Times

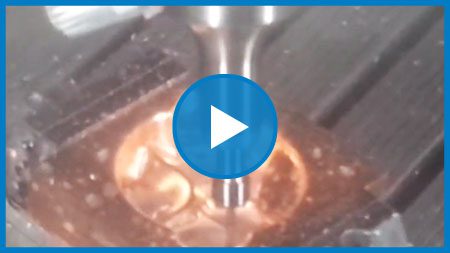

Aluminum Milling on DMG DMU 80 T by Air Turbine Spindles® 50,000 rpm, 0.37 kW 625L 50mm

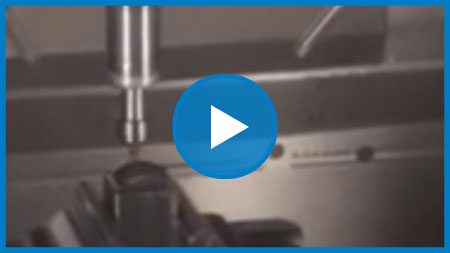

Aluminum Milling on Hurco VCX600i by Air Turbine Spindles® 50,000 rpm, 0.37 kW 625L
Service & Support
Support is always available from our technical team in the USA, Germany and Mexico. Repair Service is available in Florida and Munich.
Call our factory technicians at +1-561-994-0500 or email us at [email protected].
