602JS
602 CNC Spindle Series

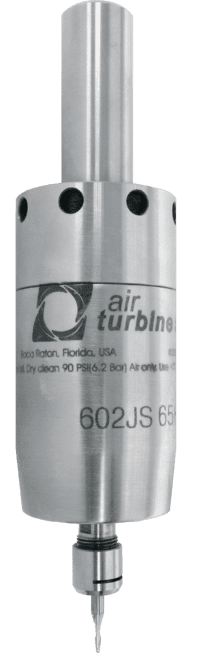

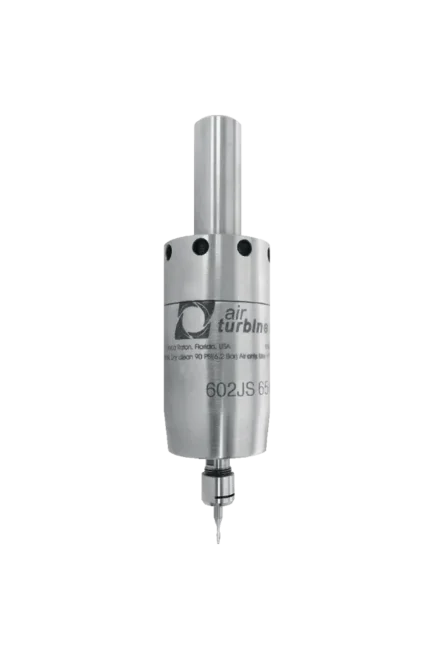

Compact, the 602JS delivers governed constant high speeds under load. Rated speeds are 40,000, 50,000, 65,000 and 90,000 RPM. Ideal for engraving, marking, slotting, drilling, and finishing with small tools the 602 speeds up cycle times – cutting cost and accelerating production. Air Turbine Spindles® patented motors maintain high speed while cutting with no gears, vanes, or brushes to burn up. Using dry clean, oil-free, 90 psi (6.2 bar) compressed air the 602 requires no lubrication and emits no oil mist. With fewer moving parts and low friction and utilizing ceramic bearings, the 602 is a precise and reliable favorite. No duty cycle.
$ 5,200.00
| 602JS Specifications | ||||
| Speed | 40,000 RPM | 50,000 RPM | 65,000 RPM | 90,000 RPM |
| Power Rating | 0.15 HP (0.11 kW) | 0.2 HP (0.15 kW) | ||
| Inlet Air Pressure | 90 psi (6.2 bar) | |||
| Air Consumption Idle | 4.5 CFM (2.1 L/s) | 5 CFM (2.36 L/s) | ||
| Air Consumption Working Flow | 5 CFM - 6 CFM (2.36 L/s - 2.83 L/s) |
|||
| Air Hoses and Fittings Minimum Size | 4 mm internal diameter | |||
| Sound Level | Less Than 78 dBA | |||
| Max Shank Capacity | ER8 UP - 1/8" (3 mm) | |||
| Spindle Weight | 23.2 oz (0.66 kg) | |||
| 602JS Specifications |
| Speed |
| Power Rating |
| Inlet Air Pressure |
| Air Consumption Idle |
| Air Consumption Working Flow |
| Air Hoses and Fittings Minimum Size |
| Sound Level |
| Max Shank Capacity |
| Spindle Weight |
| 40,000 RPM | 50,000 RPM | 65,000 RPM | 90,000 RPM |
| 0.15 HP (0.11 kW) | 0.2 HP (0.15 kW) | ||
| 90 psi (6.2 bar) | |||
| 4.5 CFM (2.1 L/s) | 5 CFM (2.36 L/s) | ||
| 5 CFM - 6 CFM (2.36 L/s - 2.83 L/s) |
|||
| 4 mm internal diameter | |||
| Less Than 78 dBA | |||
| ER8 UP - 1/8" (3 mm) | |||
| 23.2 oz (0.66kg) | |||
90,000 RPM 602 version is recommended for only special applications with micro end mills. Please call +1.561.994.0500 for more information.
Add These High Speed Spindles to Your CNC for 5 X Faster Production
Retrofit Any CNC with High Speed
We retrofit any CNC machine to mill at a constant high speed 24/7 – so any CNC can be a high-speed machine. This includes, but isn’t limited to DMG MORI, Haas, Fanuc Robodrill, Doosan, Hermle, Hurco, GROB, Brother Okuma, Makino and Mazak. Easy installation using selectable air feed inlets – choose side inlet NPT / Stop Block or center through shank/tool holder air feed. HSK, CAT, BT, and DIN Toolholder options are available. Learn more about Air Turbine Spindles on your CNC Machine by visiting their page at the links below.

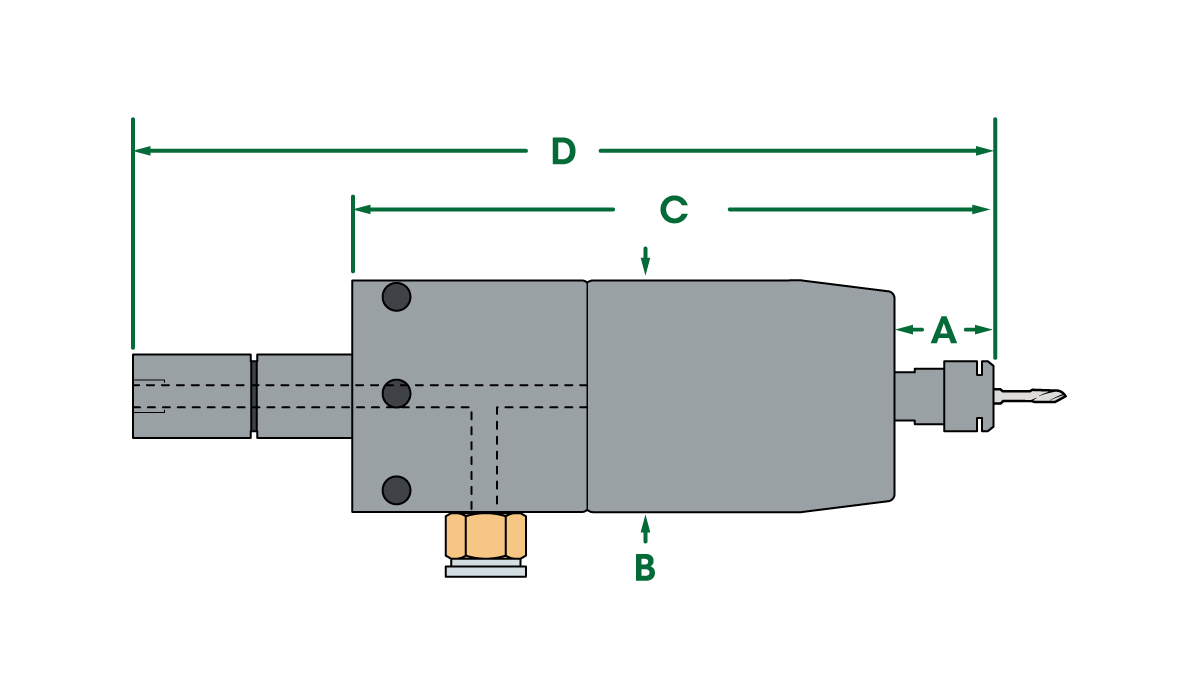

602JS Dimensions
All fittings, couplings, and hoses must have a minimum of 4 mm internal diameter.
| 602JS Dimensions | |||
| A | 0.76" (19 mm) | C | 3.75” (95 mm) |
| B | Ø 1.56” (40 mm) | D | 5.75" (146 mm) |
| 602JS Dimensions | |
| A | 0.76" (19 mm) |
| B | Ø 1.56” (40 mm) |
| C | 3.75” (95 mm) |
| D | 5.75" (146 mm) |
Equipment
Included Equipment
Standard Equipment
ER8 UP collet system. 1/8” or 3 mm standard, other sizes are available. Oil-free 90 psi / 6.2 bar clean, dry air supply required.
| Accessories Models | Part Numbers |
|---|---|
| High Flow Filter / Regulator / Extractor | 30008 |
| Tube 10 mm O.D. - 6.5 mm I.D. (order by foot) | 16508 |
| Hose & Fitting - 10 mm O.D. - 6.5mm I.D. - 12’ | 30043 |
| ER8 - 1/8" | ER8 - 3mm | ||
|---|---|---|---|
| Speed RPM | Part Numbers | Speed RPM | Part Numbers |
| 40,000 | 64250 | 40,000 | 64251 |
| 50,000 | 64252 | 50,000 | 64253 |
| 65,000 | 64254 | 65,000 | 64255 |
| 90,000 | 64256 | 90,000 | 64257 |
Videos
Brass Milling at 504”/min on Haas TM-2 by Air Turbine Spindles® 65,000 rpm 602JS
Painted Aluminum milled at 180"/min on Fadal CNC by Air Turbine Spindles® 65,000 rpm 602JS
Aluminum Engraving at 25”/min on Haas Mini Mill by Air Turbine Spindles® 65,000 rpm 602CAT40
Service & Support
Support is always available from our technical team in the USA and Germany. Repair Service is available in Florida and Munich. Call our factory technicians at +1-561-994-0500 or email us at [email protected].
