602DT

Drill-Tap Series

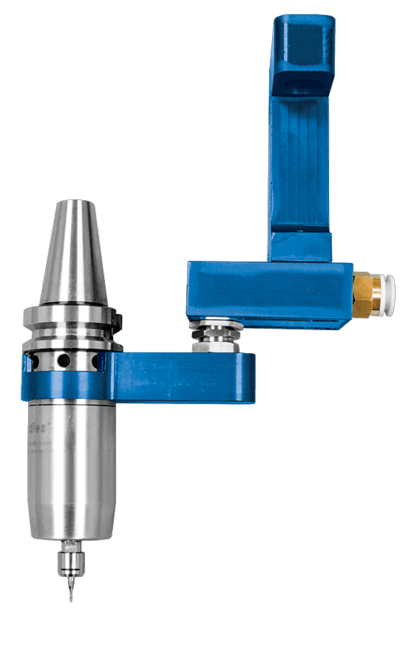

Retrofit your Drill-Tap machine with the double turbine 602DT Series for governed constant high speeds. Select 40,000, 50,000 or 65,000 rpm. Ideal for milling, drilling, engraving, marking, slotting, and finishing with small tools.

Patented Air Turbine Spindles® maintains high speed and torque while cutting with no gears, vanes, or brushes to burn up. The 602DT requires no lubrication and emits no oil mist. With just 2 moving parts, low friction and no heat, the direct drive DT Series is a powerful, precise, and reliable solution to reduce cycle times and increase tool life.

For automatic loading from the Drill-Tap magazine, install the spindle-mounted manifold block and align the nozzle to block connector, which supplies the spindle air to a clean, dry 90 psi (6.2 bar) air supply.

For manual loading installation of the spindle the side NPT adaptor simply connects to a 1/4” (6.5mm) ID for the 602DT.

602DT
Speed RPM 40,000 50,000 65,000
Model Part #
602DTBT30 RoboDrill 1/8” 65330 65332 65334
602DTBT30 RoboDrill 3mm 65331 65333 65335
602DTBT30 Brother TC 1/8” 65336 65337 65340
602DTBT30 Brother TC 3mm 65337 65339 65341
602DTBT30 Haas DT-1 1/8”** 64616 64618 64620
602DTBT30 Haas DT-1 3mm** 64617 64619 64621
Spindle Only
Speed RPM 40,000 50,000 65,000
Model Part #
602BT30 1/8” 64290 64292 64294
602BT30 3mm 64291 64293 64295
TMA (Block + Collar)
Model Part #
602DT – RoboDrill 36300
602DT – Brother TC 36301
602DT – Haas DT-1** 36304
Block Assembly Only
Model Part #
602DT – RoboDrill 36314
602DT – Brother TC 36315
602DT – Haas DT-1** 36316
Collar Assembly Only
Model Part #
602BT30 1/8” 36317
602BT30 1/8” 36318
602DT – Haas DT-1** 36323

**Single Turbine 602 Version with short endcap.
Mounting Blocks for other CNC Machines available.

602DT Specifications
Speed RPM 40,000 50,000 65,000
Power Rating hp (Kw) 0.15 (0.11) 0.2 (0.15) 0.2 (0.15)
Inlet Air Pressure

90 PSI (6.2 Bar)
Air Consumption Idle cfm (l/s) 4.5 (2.1) 4.5 (2.1) 4.5 (2.1)
Air Consumption Working Flow (l/s) 5(2.36) – 6(3.30)
Sound Level Less Than 78 dBA
Max Shank Capacity ER 8-1/8″(3mm)
Spindle Weight 35.3 oz (1kg)

A 0.72” (18mm)
B 1.56” (40mm)
C 4.71” (120mm)
D 6.52” (166mm)
E Robodrill: 3.16” (80mm) / Brother TC: 3.58” (91mm ) / Haas DT: 2.56” (65mm)

Spindle, combo filter extractor (p/n #30008), collet, wrenches, hose and fittings, plug (for alternate air inlet not in use) and carrying case. ER 8 collet system (1/8” or 3mm collet standard – other sizes optional).

Service & Support

Support is always available from our technical team in the USA, Germany and Mexico. Repair Service is available in Florida and Munich.

Call our factory technicians at +1-561-994-0500 or email us at [email protected].
