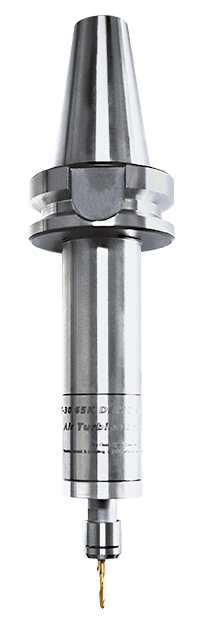

600XBT30

600X Mini CNC Spindle Series

The compact double turbine 600X spindle operates at governed 65,000 rpm or 80,000 rpm. Air Turbine Spindles® patented governor increases air flow volume to match cutting load maintaining rated high speed in cut. The 600X’s low air flow requirement facilitates through spindle air supply on any CNC. Now you get the required high SFM for small tools and 6-10x faster cycles. The miniature profile makes programming easy and fits Bumotec and Chiron machines.

The 600X’s constant high speed optimizes your tool performance, reducing breakages on micro tools. Using only 5 cfm / 2.3 liters per second airflow the 600X series minimizes air consumption.

Our direct drive has only 2 moving parts – operating with no heat and zero thermal effects on accuracy. 2 micron, precision is certified assuring ultra precision. For improved micro tool performance and productivity add the 600X to your CNC magazine. All you need is a 90 PSI, 6.2 Bar dry air through your machine spindle.

600XBT30 Specifications
Speed RPM65,00080,000
Power Rating hp (Kw)0.15 (0.11)
Inlet Air Pressure90 PSI (6.2 Bar)
Air Consumption Idle cfm (l/s)3.5
Air Consumption Working Flow (l/s)5
Sound LevelLess Than 78 dBA
Max Shank CapacityER 8-1/8"(3mm)
Spindle Weight20 oz ( 0.566 kg)

These Micro High Speed Spindles Cut Cycle Times and Reduce Wear and Tear on the Main Spindle

Drastically Reduce Cycle Times in Finishing Operations

Low Profile For Clearance - Easily Fits Bumotec and Chiron Machines

Double Turbine Power

No Heat. No Duty Cycle. 2 micron accuracy.

Through Spindle Air Supply On Any Machine

Just connect 90 PSI / 6.2 BAR inlet

Retrofit Any CNC with High Speed

We retrofit any CNC machine to mill at a constant high speed 24/7 – so any CNC can be a high-speed machine. This includes, but isn’t limited to DMG MORI, Haas, Fanuc Robodrill, Doosan, Hermle, Hurco, GROB, Brother Okuma, Makino and Mazak. Easy installation using selectable air feed inlets – choose side inlet NPT / Stop Block or center through shank/tool holder air feed. HSK, CAT, BT, and DIN Toolholder options are available. Learn more about Air Turbine Spindles on your CNC Machine by visiting their page at the links below.

600XBT30 Dimensions

600XBT30 Dimensional Drawing
All fittings, couplings, and hoses must have a minimum of 4mm internal diameter.
600XBT30 Dimensions
A0.68”(17mm)
B0.98”(25mm)
C4.55”(115mm)
D6.54"(166mm)

Equipment

Included Equipment

Spindle
Low Flow filter / Regulator Extractor (p/n #30006)
Collet
Wrenches
Hose
Fittings
Carrying case

Standard Equipment

ER 8 UP collet system (1/8” or 3mm collet standard – other sizes optional). Oil free 90 psi / 6.2 bar clean, dry air supply required.

Accessories ModelsPart #
Low Flow Filter / Regulator Extractor30006
Tube 6mm O.D. - 4mm I.D. (order by foot)16508
Hose & Fitting - 6mm O.D. - 4mm I.D. - 12’30043

We retrofit any CNC machine to mill at a constant high speed 24/7 – so any CNC can be a high-speed machine. This includes, but isn’t limited to DMG MORI, Haas, Fanuc Robodrill, Doosan, Hermle, Hurco, GROB, Brother Okuma, Makino and Mazak. Easy installation using selectable air feed inlets – choose side inlet NPT / Stop Block or center through shank/tool holder air feed. HSK, CAT, BT, and DIN Toolholder options are available. Learn more about Air Turbine Spindles on your CNC Machine by visiting their page at the links below.

ER8- 1/8"ER8- 3mm
Speed RPMPart #Speed RPMPart #
65,0006000765,00060005
80,0006000880,00060006

Video

Make Programming Easy with the compact 600X CNC Spindle Series

Service & Support

Support is always available from our technical team in the USA and Germany. Repair Service is available in Florida and Munich. Call our factory technicians at +1-561-994-0500 or email us at [email protected].
