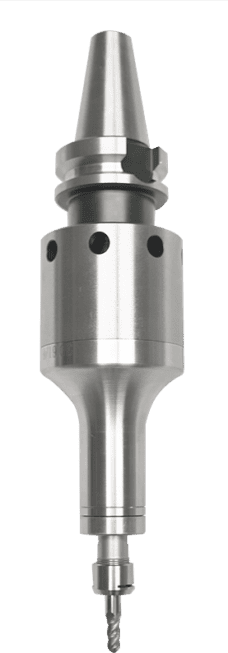

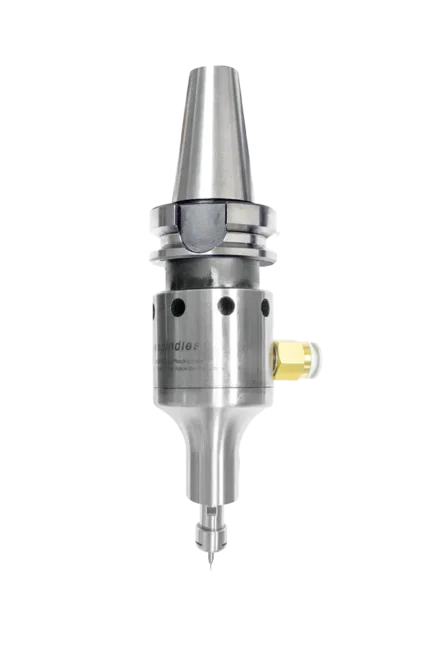

625LBT30 50mm

Extended Barrel Series

Integration of the popular BT30 tool holder into the 625S spindle housing delivers constant high speed with ultra-low vibration and improves accuracy and rigidity. The powerful 625LBT30 (50mm) is designed for close workpiece operations and machines with very short z-axis travel. The 625LBT30 (50mm) delivers patented constant governed high speed operation under load up to 0.50 hp / 0.37 kW at 30,000, 40,000 or 50,000 rpm. At these high speeds, tool coatings achieve the required temperatures to extend endmill life saving money as well as accelerating production. Air Turbine Spindles® patented constant governed high-speed operation under load cuts faster and cleaner – speeding up cycle times and achieving major savings. Faster cutting with small end mills and drills, finishing or polishing with super accuracy. High-speed cutting improves finish quality and accuracy with a fast light pass of your tool. No Duty Cycle.

625LBT30 50mm Specifications
Speed RPM30,00040,00050,000
Power Rating hp (Kw)0.40 (0.30)0.45 (0.34)0.50 (0.37)
Inlet Air Pressure90 PSI (6.2 Bar)
Air Consumption Idle cfm (l/s)10.5 (4.9)11 (5.2)11 (5.2)
Air Consumption Working Flow (l/s)11 (5.2) - 20 (9.4)
Sound LevelLess Than 78 dBA
Max Shank CapacityER 11 - 1/4” (6mm)
Spindle Weight84 oz (2.38 kg)

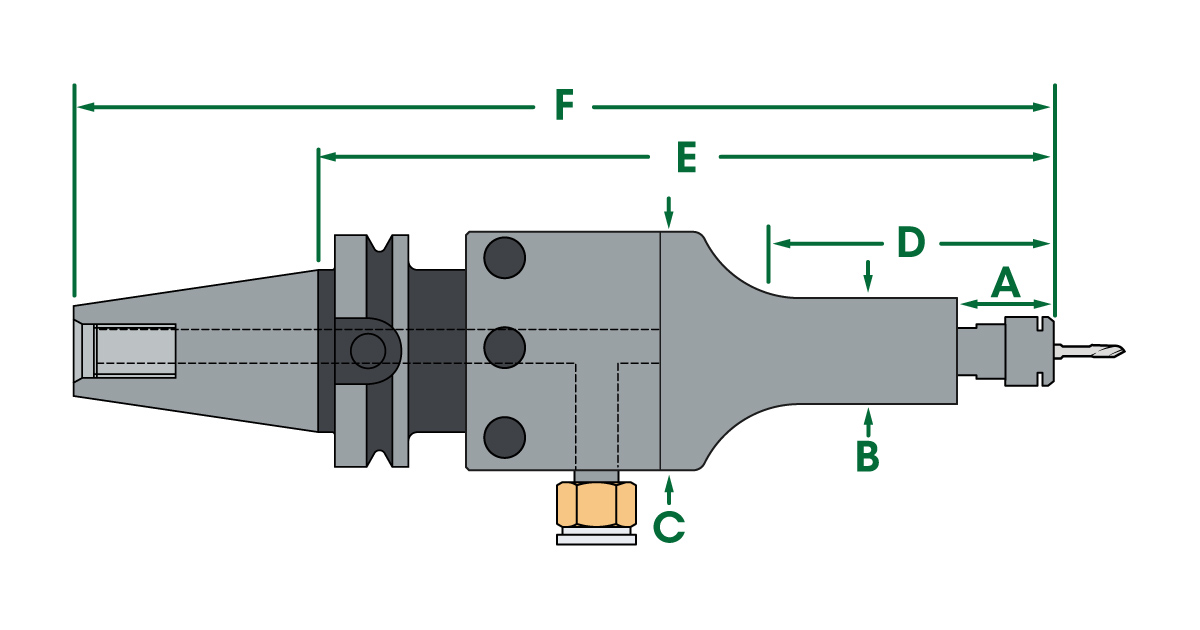

A 1.00” (25mm)
B 1.00” (25mm)
C 2.25” (57mm)
D 2.16” (55mm)
E 6.61” (168mm)
F 8.53” (217mm)

Spindle, combo filter extractor (p/n #30008), collet, wrenches, hose and fittings, plug (for alternate air inlet not in use), and carrying case. ER 11 collet system (1/4” or 6mm collet standard – other sizes optional). Oil-free 90 psi / 6.2 bar, clean, dry air supply required.

Accessories Models Part #
High Flow Filter / Regulator / Extractor 30008
Tube 10mm O.D. – 6.5mm I.D. (order by foot) 16508
Hose & Fitting – 10mm O.D. – 6.5mm I.D. – 12’ 30043

We retrofit any CNC machine to mill at a constant high speed 24/7 – so any CNC can be a high-speed machine. This includes, but isn’t limited to DMG MORI, Haas, Fanuc Robodrill, Doosan, Hermle, Hurco, GROB, Brother Okuma, Makino and Mazak. Easy installation using selectable air feed inlets – choose side inlet NPT / Stop Block or center through shank/tool holder air feed. HSK, CAT, BT, and DIN Toolholder options are available. Learn more about Air Turbine Spindles on your CNC Machine by visiting their page at the links below.

Brother LogoDMG Mori LogoHaas LogoHermle LogoFanuc LogoDoosan LogoGrob LogoHurco Logo
Block and Collar on the Automatic Tool Changer Assembly

Automatically load Air Turbine Spindles® in CNC machines with our patented wrap-around Toolchanger Mounting Assembly (TMA). This option allows CNC tool-changers to automatically load/unload our family of high-speed precision spindles using a proprietary collar system and mounting block or ring around the CNC spindle integrated to the right side of the CNC spindle in minutes.

Mounting blocks or rings compatible with Haas, Hurco, Doosan, Robodrill, Hardinge, DMG, Brother, Okuma, and all other CNC’s are available. We are accustomed to developing custom solutions for any CNC. A Universal Block can be provided for drilling your CNC screw positions. Installation Kits are available. The TMA block remains on the CNC spindle for normal tool changes, even if not using the Air Turbine Spindles™ as it will not interfere when using the main spindle.

ER11- 1/4″ ER11- 6mm
Speed RPM Part # Speed RPM Part #
30,000 65072 30,000 65073
40,000 65074 40,000 65075
50,000 65076 50,000 65077
