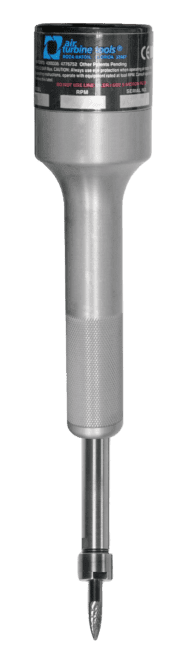

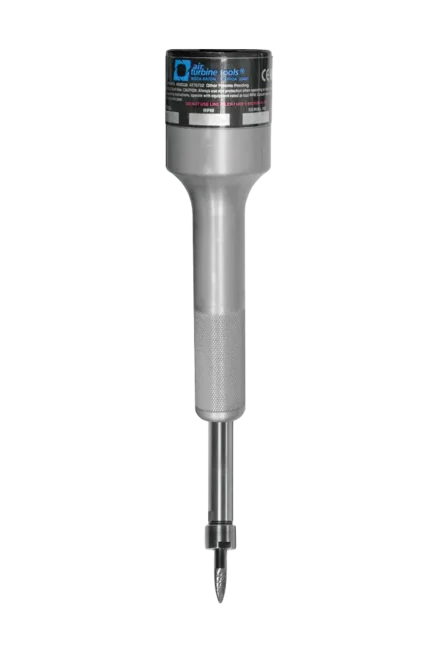

525XSVE

1/4” / 6mm Extended Straight Hand Tool Series

Reach deep cavities! The 525XSVE delivers double turbine power combined with lightweight, low vibration, low noise for operator comfort. The 525XSVE also provides greater accuracy and a finer high-quality finish.

The constant high-speed 525XSVE enables you to work on hard-to-reach applications for fast removal or finishing – comfortably with a light touch directing the tool. At up to 0.80 hp (0.60 kW) high speed cutting action on your workpiece is assured. Patented automatic brake option stops this tool in seconds.

525XSVE Specifications
Speed RPM30,000
Power Rating hp (kW)0.80 (0.60)
Inlet Air Pressure90 PSI (6.2 Bar)
Air Consumption Idle cfm (l/s)19 (8.97)
Air Consumption Working Flow cfm (l/s)22 (10.38) - 30 (14.16)
Sound LevelLess Than 67 dBA
Max Shank Capacity1/4” (6mm)
Hand Tool Weight27.9oz (0.79kg)

525XSVE Dimensional Drawing

525XSVE Dimensions
A 2.5” (63.5mm) D 4.97” (126.24mm)
B 1.00” (25.40mm) E 5.64” (143.26mm)
C 2.00” (50.80mm) F 10.46” (265.68mm)

Hand Tool, 1/4” or optional 6mm collet, collet wrenches, rear exhaust, exhaust deflector, 5’ air supply assembly with slide valve, and 3/8” NPT air supply fitting. Oil-free 90 psi / 6.2 bar, clean, dry air supply required.

Accessories Models Part #
High Flow Filter 30004
High Flow Filter / Regulator 30003
High Flow Filter / Regulator / Extractor 30008

Time to reach EAV 2.5 m/s² A(8) 12 hours, 32 minutes
Time to reach ELV 5 m/s² A(8) 50 hours, 8 minutes
Vibration magnitude m/s² r.m.s 2.00

1/4″ 6mm
Speed RPM Part # Speed RPM Part #
30,000 42562 30,000 42563
