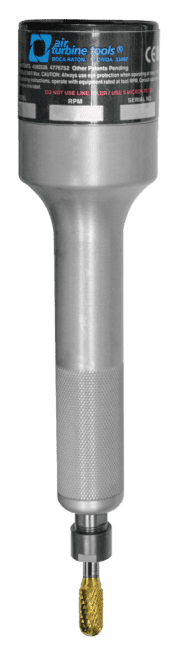

525XSV
Straight Hand Tool Series
1/4” / 6 mm Capacity
Exceptionally powerful and comfortable! The 525XSV with slide valve for quick-shut off delivers high torque at lower speeds. Double turbine power combines with lightweight, low vibration, low noise and provides greater accuracy and a finer high-quality finish.
The constant high-speed 525XSV enables you to work on hard-to-reach applications for fast removal or finishing – comfortably with a light touch directing the tool. At up to 0.8 HP (0.6 kW) high speed cutting action on your workpiece is assured. Patented automatic brake option stops this tool in a few seconds.
| 525XSV Specifications | ||
| Speed | 30,000 RPM | 40,000 RPM |
| Power Rating | 0.8 HP (0.6 kW) | |
| Inlet Air Pressure | 90 psi (6.2 bar) | |
| Air Consumption Idle | 19 CFM (8.97 L/s) | 20 CFM (9.44 L/s) |
| Air Consumption Working Flow | 22 CFM - 30 CFM (10.38 L/s - 14.16 L/s) |
|
| Air Hoses and Fittings Minimum Size | 8 mm internal diameter | |
| Sound Level | Less Than 67 dBA | |
| Max Shank Capacity | 1/4” (6 mm) | |
| Hand Tool Weight | 15.5 oz (0.44 kg) | |
| 525XSV Specifications |
| Speed |
| Power Rating |
| Inlet Air Pressure |
| Air Consumption Idle |
| Air Consumption Working Flow |
| Air Hoses and Fittings Minimum Size |
| Sound Level |
| Max Shank Capacity |
| Hand Tool Weight |
| 30,000 RPM | 40,000 RPM |
| 0.8 HP (0.6 kW) | |
| 90 psi (6.2 bar) | |
| 19 CFM (8.97 L/s) | 20 CFM (9.44 L/s) |
| 22 CFM - 30 CFM (10.38 L/s - 14.16 L/s) |
|
| 8 mm internal diameter | |
| Less Than 67 dBA | |
| 1/4” (6 mm) | |
| 15.5 oz (0.44 kg) | |
These Air Tools Cut Steel and Stress
| 525XSV Vibration Statistics | |
| Time to reach EAV 2.5 m/s² A(8) | 23 hours, 32 minutes |
| Time to reach ELV 5 m/s² A(8) | 94 hours, 6 minutes |
| Vibration magnitude m/s² r.m.s | 1.46 |

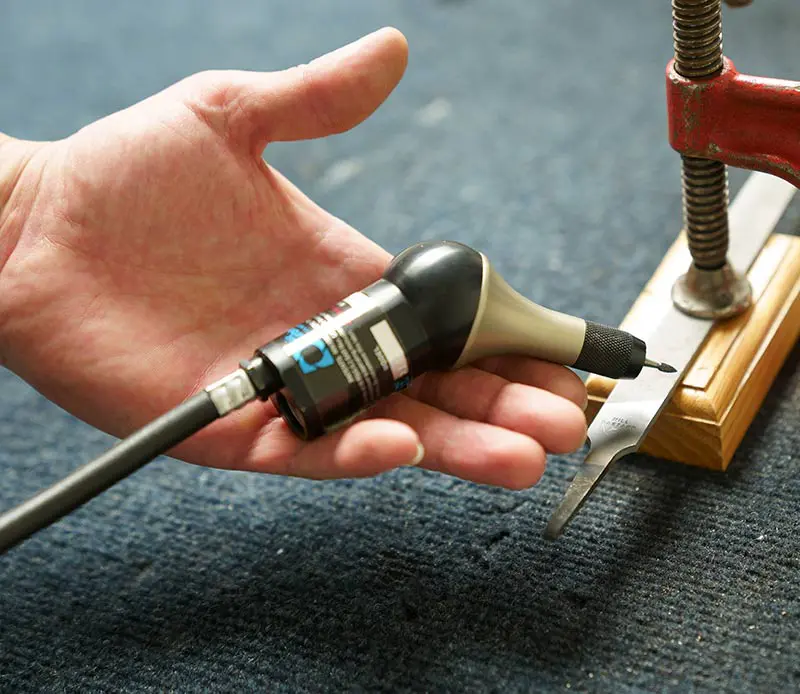

Don't Sacrifice Comfort and Safety for Performance!
Solve problems in hand operations with revolutionary Air Turbine Tools®. Reduce injury risk and repetitive stress on your hands and arm, and eliminate limitations on working time.
EAV = Time to reach Exposure Action Value
ELV = Exposure Limit Value
525XSV Dimensions
All fittings, couplings, and hoses must have a minimum of 8 mm internal diameter.
| 525XSV Dimensions | |||
| A | 0.86” (21.84 mm) | D | 4.97” (126.24 mm) |
| B | 1.0” (25.4 mm) | E | 5.64” (143.26 mm) |
| C | 2.0” (50.8 mm) | F | 8.13” (206.5 mm) |
| 525XSV Dimensions | |
| A | 0.86” (21.84 mm) |
| B | 1.0” (25.4 mm) |
| C | 2.0” (50.8 mm) |
| D | 4.97” (126.24 mm) |
| E | 5.64” (143.26 mm) |
| F | 8.13” (206.5 mm) |
Equipment
Included Equipment
Standard Equipment
1/4” or 6 mm collet standard. Other sizes are available. Oil-free 90 psi / 6.2 bar clean, dry air supply required.
| Accessories Models | Part Numbers |
|---|---|
| High Flow Filter | 30004 |
| High Flow Filter / Regulator | 30003 |
| High Flow Filter / Regulator / Extractor | 30008 |
| 5’ Air Supply Assembly w/Fitting for SV Models | 32707 |
| 1/4" | 6 mm | ||
|---|---|---|---|
| Speed RPM | Part Numbers | Speed RPM | Part Numbers |
| 30,000 | 42530 | 30,000 | 42531 |
| 40,000 | 42540 | 40,000 | 42541 |
| 1/4" w/Brake | 6 mm w/Brake | ||
|---|---|---|---|
| Speed RPM | Part Numbers | Speed RPM | Part Numbers |
| 30,000 | 42534 | 30,000 | 42535 |
| 40,000 | 42544 | 40,000 | 42545 |
