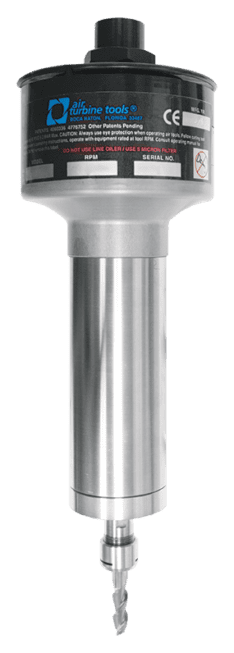

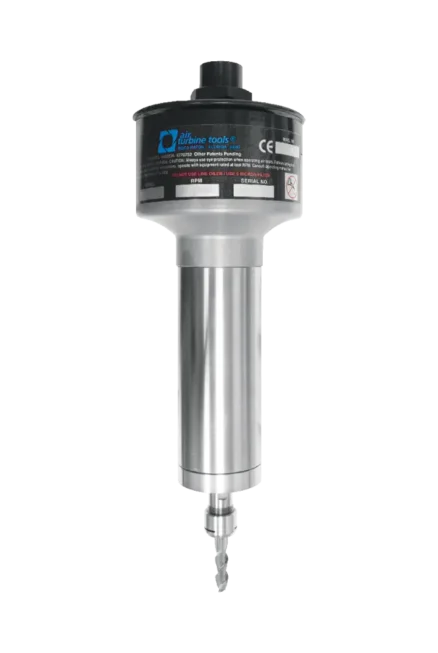

460HD
Heavy Duty Motor Mount Series
Quadruple angular ceramic bearings, 50,000 RPM, 0.94 HP (0.7 kW), and a rigid steel barrel for mounting make the new governed 460HD ideal for cutting or finishing harder materials.
Sealed at its front collet for wet environments. The 460’s durable, direct drive, low heat and low vibration governed motor is a reliable workhorse with powerful performance 24/7. A low vibration magnitude of 1.25 m/s² r.m.s, makes the well balanced 460HD ideal for robotic integrations. Applications include finishing, drilling, milling and routing.
Mountable area of Ø 41.15 mm OD by 63.5 mm.
| 460HD Specifications | |
| Speed | 50,000 RPM |
| Power Rating | 0.94 HP (0.7 kW) |
| Inlet Air Pressure | 90 psi (6.2 bar) |
| Air Consumption Idle | 20 CFM (9.44 L/s) |
| Air Consumption Working Flow | 20 CFM - 35 CFM (9.44 L/s - 16.52 L/s) |
| Air Hoses and Fittings Minimum Size | 8 mm internal diameter |
| Sound Level | Less Than 78 dBA |
| Max Shank Capacity | ER11 - 1/4” (6 mm) |
| Motor Weight | 46 oz (1.3 kg) |
| 460HD Specifications |
| Speed |
| Power Rating |
| Inlet Air Pressure |
| Air Consumption Idle |
| Air Consumption Working Flow |
| Air Hoses and Fittings Minimum Size |
| Sound Level |
| Max Shank Capacity |
| Motor Weight |
| 50,000 RPM |
| 0.94 HP (0.7 kW) |
| 90 psi (6.2 bar) |
| 20 CFM (9.44 L/s) |
| 20 CFM - 35 CFM (9.44 L/s - 16.52 L/s) |
| 8 mm internal diameter |
| Less Than 78 dBA |
| ER11 - 1/4” (6 mm) |
| 46 oz (1.3 kg) |
Accelerate feed rates at 25,000 - 65,000 rpm Power to 1.40 hp
460HD Dimensions
All fittings, couplings, and hoses must have a minimum of 8 mm internal diameter.
| 460HD Dimensions | |||||
| A | 1.05” (26.54 mm) | D | 2.5” (63.5mm) | F | Ø 3.1” (79.74 mm) |
| B | Ø 1.62” (41.14 mm) | ||||
| E | 6.03” (153.16 mm) | G | 7.61” (193.29mm) | ||
| C | 5.2” (132.08mm) | ||||
| 460HD Dimensions | |
| A | 1.05” (26.54 mm) |
| B | Ø 1.62” (41.14 mm) |
| C | 5.2” (132.08 mm) |
| D | 2.5” (63.5 mm) |
| E | 6.03” (153.16 mm) |
| F | Ø 3.1” (79.74 mm) |
| G | 7.61” (193.29 mm) |
Equipment
Included Equipment
► 460HD Motor
► ER11 Collet System (1/4” or 6 mm standard)
► Collet Wrenches
► 3/8” NPT Air Supply Fitting
Standard Equipment
ER11 collet system. 1/4” or 6 mm standard, other sizes are available. Oil-free 90 psi / 6.2 bar clean, dry air supply required
| Accessories Models | Part Numbers |
|---|---|
| High Flow Filter Regulator Extractor | 30008 |
| 6’ Air Supply Assembly w/Fitting | 30012 |
| ER11 - 1/4” | ER11 - 6 mm | ||
|---|---|---|---|
| Speed RPM | Part Numbers | Speed RPM | Part Numbers |
| 50,000 | 34470 | 50,000 | 34471 |
