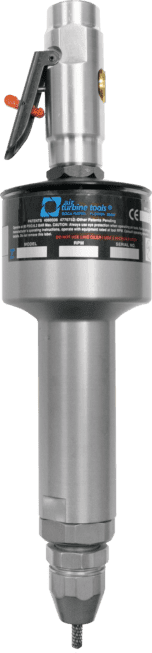

310RXDM
Router Hand Tool Series
Incredible Double Turbine Power – to 1.40 hp (1.04 kW). Composites, plastics, and alloys can be routed faster and cleaner at 40,000 rpm with finer surface quality and less fiber break-out with the 310RXDM with trigger switch control. The oil-free patented mechanism results in no oil misting and no part contamination. The 310RXDM is a powerful direct-drive turbine with only 2 moving parts: the result is low vibration, no heat, and great durability.
| 310RXDM Specifications | |||
| Speed RPM | 25,000 | 30,000 | 40,000 |
| Power Rating np (Kw) | 1.2 (0.90) | 1.3 (0.98) | 1.4 (1.04) |
| Inlet Air Pressure | 90 PSI (6.2 Bar) | ||
| Air Consumption Idle cfm (l/s) | 16 (7.55) | 17 (8.02) | 18 (8.50) |
| Air Consumption Working Flow (l/s) | 19 (8.97) - 40 (18.89) | ||
| Sound Level | Less Than 67 dBA | ||
| Max Shank Capacity | 1/4” (6mm) | ||
| Hand Tool Weight | 41.4oz (1.17kg) | ||
| 310RXDM Dimensions | |||
| A | MIN: 1.50” (38.10mm) MAX: 1.63” (41.40mm) |
||
| B | 1.19” (30.23mm) | E | 4.01” (101.85mm) |
| C | 1.62” (41.15mm) | F | 5.04” (128.02mm) |
| D | 3.10” (78.74mm) | G | 11.34” (288.03mm) |
Hand Tool, 1/4” or optional 6mm collet, collet wrenches, rear exhaust, exhaust deflector and trigger switch. Oil-free 90 psi (6.2 bar), clean, dry air supply required.
| Accessories Models | Part # |
|---|---|
| High Flow Filter Regulator Extractor with 1/2” NPT | 30084 |
| 6’ Air Supply Assembly w/Fitting for DM Models | 30012 |
| 12’ Air Supply Assembly w/Fitting for DM Models | 30013 |
| Time to reach EAV 2.5 m/s² A(8) | 345 hours, 40 minutes |
| Time to reach ELV 5 m/s² A(8) | 1382 hours, 37 minutes |
| Vibration magnitude m/s² r.m.s | 0.38 |
| 1/4″ | 6mm | ||
|---|---|---|---|
| Speed RPM | Part # | Speed RPM | Part # |
| 25,000 | 43422 | 25,000 | 43423 |
| 30,000 | 43432 | 30,000 | 43433 |
| 40,000 | 43442 | 40,000 | 43443 |
| 1/4″ w/ Break | 6mm w/ Break | ||
|---|---|---|---|
| Speed RPM | Part # | Speed RPM | Part # |
| 25,000 | 43426 | 25,000 | 43427 |
| 30,000 | 43436 | 30,000 | 43437 |
| 40,000 | 43446 | 40,000 | 43447 |
