650CAT50

650 Spindle Series

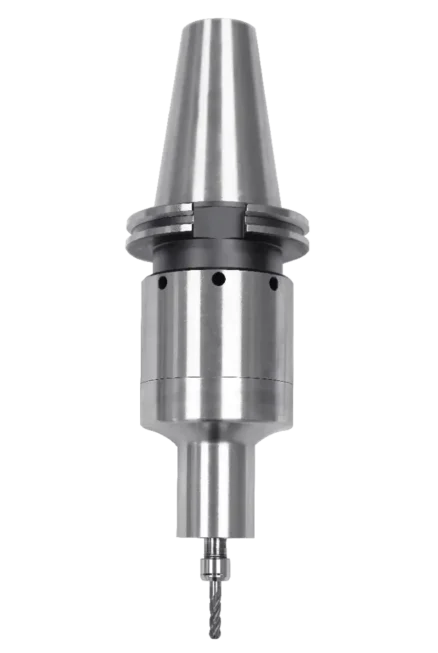

The 650CAT50 delivers governed constant high speeds under load – 25,000 to 40,000 rpm, < 0.88 hp (0.66 kW). Robust and reliable, with double front ceramic bearings, the 650 Series is ideal for heavier duty applications and milling hard materials in corners. The governor-controlled turbine maintains rated high speed, optimizing tool performance and life. Effective in all materials, including tool steel, titanium, and ceramic. Ultra-low vibration and no heat in 24/7 operation. Selectable rear or side air feed on each spindle. Automatic Loading from the magazine on all machines.

650CAT50 Specifications
Speed RPM25,00030,00040,000
Power Rating hp (Kw)0.80 (0.60)0.83 (0.62)0.88 (0.66)
Inlet Air Pressure90 PSI (6.2 Bar)
Air Consumption Idle cfm (l/s)13 (6.1) 14 (6.6) 14 (6.6)
Air Consumption Working Flow (l/s)14 (6.60) - 35 (16.5)
Sound LevelLess Than 78 dBA
Max Shank CapacityER 11 - 1/4” (6mm)
Spindle Weight112.8 oz (3.20 kg)

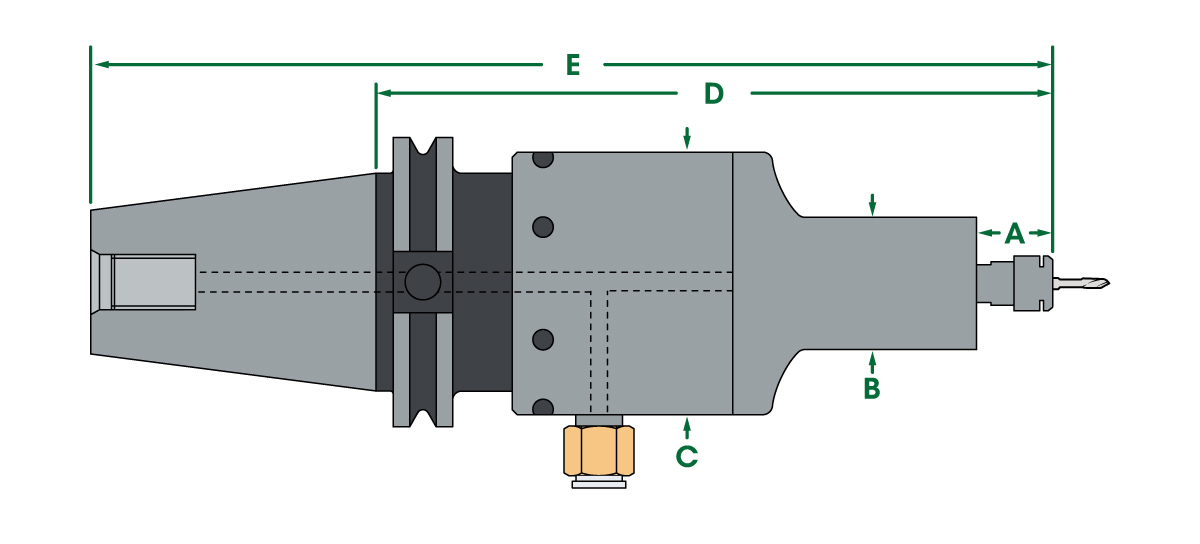

A 0.87” (22mm)
B 3.23” (82mm)
C 7.13” (181mm)
D 11.2” (284mm)

Spindle, combo filter extractor (p/n #30008), collet, wrenches, hose and fittings, plug (for alternate air inlet not in use) and carrying case. ER 11 collet system (1/4” or 6mm collet standard – other sizes optional). Oil-free 90 psi / 6.2 bar, clean, dry air supply required.

Accessories Models Part #
High Flow Filter / Regulator / Extractor 30008
Tube 12mm O.D. – 8mm I.D. (order by foot) 16509
Hose & Fitting – 12mm O.D. – 8mm I.D. – 12’ 30045

We retrofit any CNC machine to mill at a constant high speed 24/7 – so any CNC can be a high-speed machine. This includes, but isn’t limited to DMG MORI, Haas, Fanuc Robodrill, Doosan, Hermle, Hurco, GROB, Brother Okuma, Makino and Mazak. Easy installation using selectable air feed inlets – choose side inlet NPT / Stop Block or center through shank/tool holder air feed. HSK, CAT, BT, and DIN Toolholder options are available. Learn more about Air Turbine Spindles on your CNC Machine by visiting their page at the links below.

Brother LogoDMG Mori LogoHaas LogoHermle LogoFanuc LogoDoosan LogoGrob LogoHurco Logo
Block and Collar on the Automatic Tool Changer Assembly

Automatically load Air Turbine Spindles® in CNC machines with our patented wrap-around Toolchanger Mounting Assembly (TMA). This option allows CNC tool-changers to automatically load/unload our family of high-speed precision spindles using a proprietary collar system and mounting block or ring around the CNC spindle integrated to the right side of the CNC spindle in minutes.

Mounting blocks or rings compatible with Haas, Hurco, Doosan, Robodrill, Hardinge, DMG, Brother, Okuma, and all other CNC’s are available. We are accustomed to developing custom solutions for any CNC. A Universal Block can be provided for drilling your CNC screw positions. Installation Kits are available. The TMA block remains on the CNC spindle for normal tool changes, even if not using the Air Turbine Spindles™ as it will not interfere when using the main spindle.

ER11- 1/4″ ER11- 6mm
Speed RPM Part # Speed RPM Part #
25,000 64220 25,000 64221
30,000 64222 30,000 64223
40,000 64224 40,000 64225

Videos

50,000 rpm Creates the Perfect Chocolate Mold at HAAS Allendale

650 at 40,000 rpm with 1mm Endmill

650 Series Milling and Drilling Aluminum at 40,000 rpm on Mikron CNC

Aluminum Slotting at 2000 mm/min on Famup MC120 - 0.88hp

Service & Support

Support is always available from our technical team in the USA, Germany and Mexico. Repair Service is available in Florida and Munich.

Call our factory technicians at +1-561-994-0500 or email us at [email protected].
