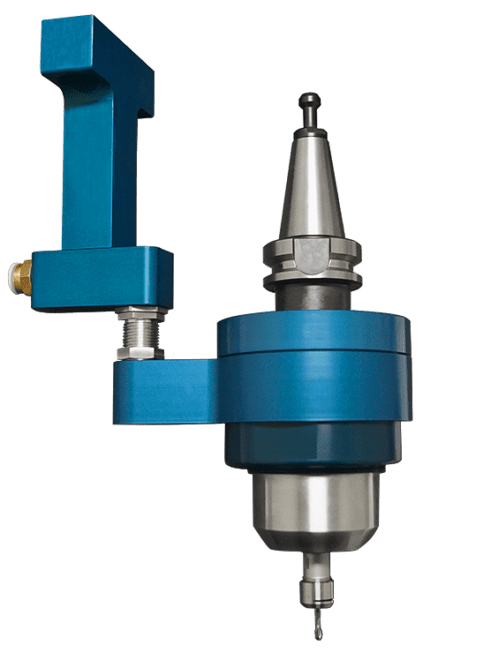

625DT
Drill-Tap Series

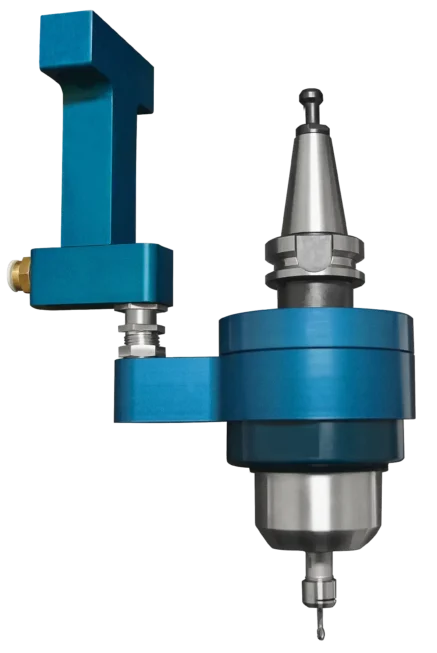

Just fit the new, patented, single turbine 625DT Series spindles to your Drill-Tap machine magazine for automatic tool changing and increase production. Air Turbine Spindles® Air Supply Adaptor manifold block connects to the machine spindle housing, via the automatic tool change, to supply air at 90 psi (6.2 bar) to the powerful, direct-drive turbine motor.
Increase milling and drilling feed rates resulting in higher productivity with no duty cycle for true 24/7 unattended production – 30,000, 40,000, 50,000 RPM, or 65,000 RPM up to 0.5 HP (0.37 kW).
For automatic loading from the Drill-Tap magazine, install the spindle-mounted manifold block and align the nozzle to the block connector, which supplies the spindle air to a clean, dry 90 psi (6.2 bar) air supply.
For manual loading installation of the spindle, the side NPT adaptor simply connects to a 6 mm ID hose.
$ 6,500.00
| 625DT Specifications | ||||
| Speed | 30,000 RPM | 40,000 RPM | 50,000 RPM | 65,000 RPM |
| Power Rating | 0.4 HP (0.3 kW) | 0.45 HP (0.34 kW) | 0.5 HP (0.37 kW) | 0.55 HP (0.41 kW) |
| Inlet Air Pressure | 90 psi (6.2 bar) | |||
| Air Consumption Idle | 12 CFM (5.66 L/s) | 14 CFM (6.61 L/s) | 16 CFM (7.55 L/s) | |
| Air Consumption Working Flow | 11 CFM - 20 CFM (5.19 L/s - 9.44 L/s) | |||
| Air Hoses and Fittings Minimum Size | 6 mm internal diameter | |||
| Sound Level | Less Than 78 dBA | |||
| Max Shank Capacity | ER11 UP - 1/4” (6 mm) | |||
| Spindle Weight | 74.6 oz (2.11 kg) | |||
| 625DT Specifications |
| Speed |
| Power Rating |
| Inlet Air Pressure |
| Air Consumption Idle |
| Air Consumption Working Flow |
| Air Hoses and Fittings Minimum Size |
| Sound Level |
| Max Shank Capacity |
| Spindle Weight |
| 30,000 RPM | 40,000 RPM | 50,000 RPM | 65,000 RPM |
| 0.4 HP (0.3 kW) | 0.45 HP (0.34 kW) | 0.5 HP (0.37 kW) | 0.55 HP (0.41 kW) |
| 90 psi (6.2 bar) | |||
| 12 CFM (5.66 L/s) | 14 CFM (6.61 L/s) | 16 CFM (7.55 L/s) | |
| 11 CFM - 20 CFM (5.19 L/s - 9.44 L/s) | |||
| 6 mm internal diameter | |||
| Less Than 78 dBA | |||
| ER11 UP - 1/4” (6 mm) | |||
| 74.6 oz (2.11 kg) | |||

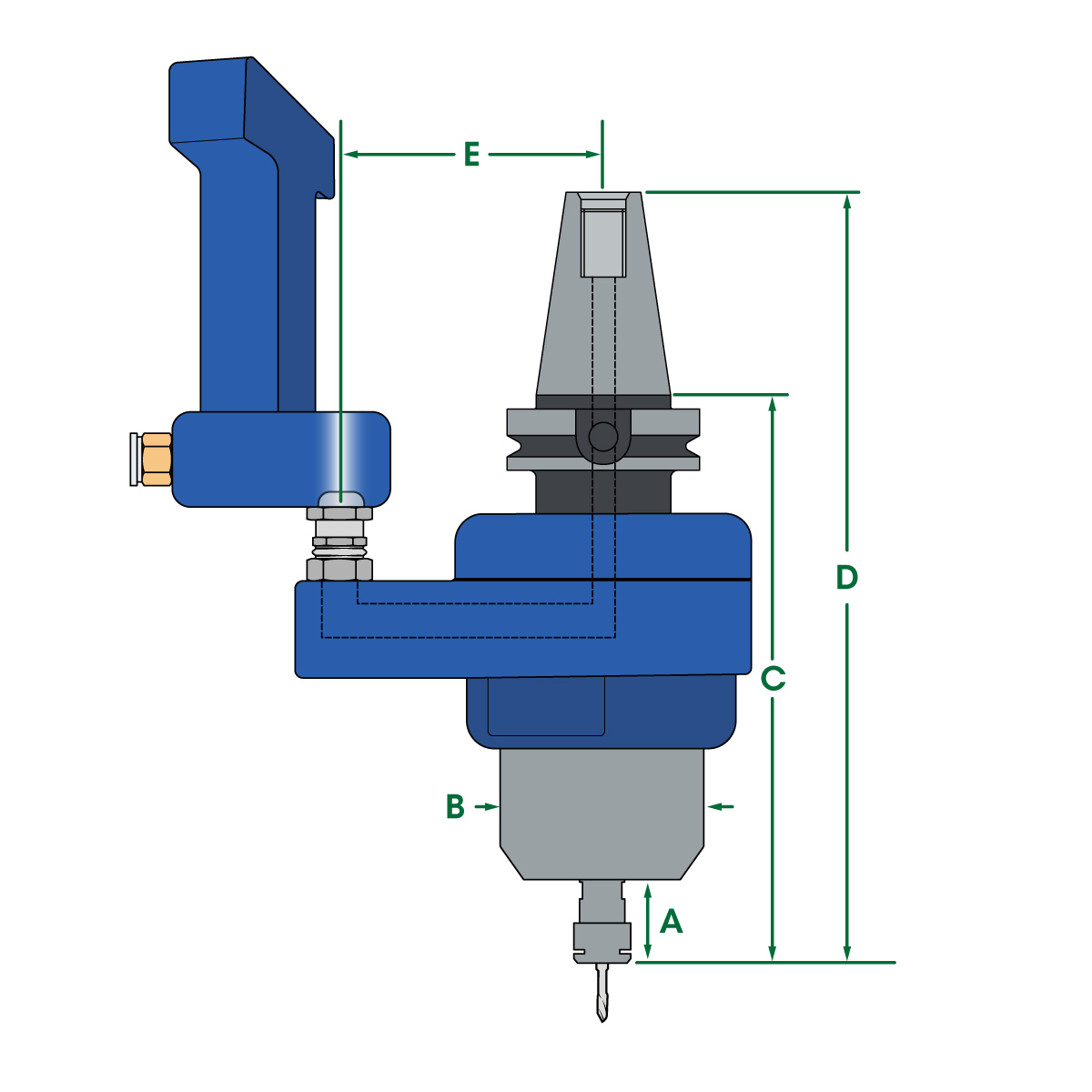

625DT Dimensions
All fittings, couplings, and hoses must have a minimum of 6 mm internal diameter.
| 625DT Dimensions | |
| A | 1.0” (25.4 mm) |
| B | Ø 2.24” (56.7 mm) |
| C | 6.43” (163.3 mm) |
| D | 8.38” (212.9 mm) |
| E | Robodrill: 3.16” (80 mm) |
| Brother TC: 3.58” (91 mm) | |
| Haas DT: 2.56” (65 mm) | |
| 625DT | ||||
|---|---|---|---|---|
| Speed RPM | 30,000 | 40,000 | 50,000 | 65,000 |
| Model | Part Numbers | |||
| 625DTBT30 RoboDrill 1/4” | 65350 | 65352 | 65354 | 65356 |
| 625DTBT30 RoboDrill 6 mm | 65351 | 65353 | 65355 | 65357 |
| 625DTBT30 Brother TC 1/4” | 65358 | 65360 | 65362 | 65364 |
| 625DTBT30 Brother TC 6 mm | 65359 | 65361 | 65363 | 65365 |
| 625DTBT30 Haas DT-1** 1/4” | 64642 | 64644 | 64646 | 65304 |
| 625DTBT30 Haas DT-1** 6 mm | 64643 | 64645 | 64647 | 65305 |
| Spindle Only | ||||
| Speed RPM | 30,000 | 40,000 | 50,000 | 65,000 |
| Model | Part Numbers | |||
| 625BT30 1/4” | 64210 | 64212 | 64306 | 65138 |
| 625BT30 6 mm | 64211 | 64213 | 64307 | 65139 |
| TMA (Block + Collar) | ||||
| Model | Part Numbers | |||
| 625DT - RoboDrill | 36302 | |||
| 625DT - Brother TC | 36303 | |||
| 625DT - Haas DT-1** | 36305 | |||
| Block Assembly Only | ||||
| Model | Part Numbers | |||
| 625DT - RoboDrill | 36314 | |||
| 625DT - Brother TC | 36315 | |||
| 625DT - Haas DT-1** | 36316 | |||
| Collar Assembly Only | ||||
| Model | Part Numbers | |||
| 625DT - RoboDrill | 36318 | |||
| 625DT - Brother TC | 36320 | |||
| 625DT - Haas DT-1** | 36324 | |||
| **Single Turbine 625 Version is used in the Haas DT and certain other machine types. | ||||
| Mounting Blocks for other CNC Machines available. | ||||
Videos
This New CNC Spindle Mills Molds at 80,000 RPM on Robodrill
Aluminum Milling at 1000"/min - High Speed Spindles with No Duty Cycle
High Speed Milling 6061 ALU on Brother Speedio: The 50,000 RPM, .76 HP Pneumatic Spindle
Service & Support
Support is always available from our technical team in the USA and Germany. Repair Service is available in Florida and Munich. Call our factory technicians at +1-561-994-0500 or email us at [email protected].
