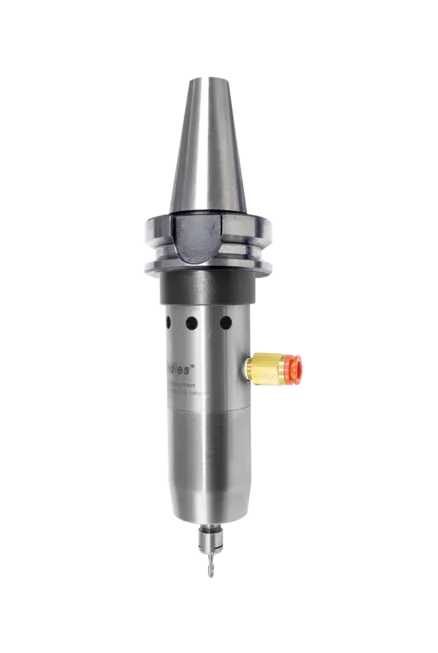

602BT30

602 CNC Spindle Series

Integration of the popular BT30 tool holder into 602 spindle housing cuts vibration and improves accuracy and rigidity. Rigid steel construction in one piece with the tool holder also cuts the height of the unit. Air Turbine Spindles® patented constant governed high-speed operation under load cuts faster and cleaner – speeding up cycle times and achieving major savings. Your solution for fast cutting with small end mills and drills, finishing or marking. High-speed cutting improves finish quality and accuracy with a fast light pass of your tool. At 40,000, 50,000, 65,000, or *90,000 rpm tool coatings achieve the required temperatures to extend endmill life-saving money as well as accelerating production. 0.2 hp (0.15 kW). No Duty Cycle.



*90,000 rpm 602 version is recommended for only special applications with micro end mills. Please call +1.561.994.0500 for more information.

602BT30 Specifications
Speed RPM40,00050,00065,00090,000
Power Rating hp (Kw)0.15 (0.11)0.2 (0.15)0.2 (0.15) .2(0.15)
Inlet Air Pressure90 psi (6.2 bar)
Air Consumption Idle cfm (l/s)4.5 (2.1) 4.5 (2.1)4.5 (2.1)5(2.4)
Air Consumption Working Flow (l/s)5(2.36) - 6(3.30)
Sound LevelLess Than 78 dBA
Max Shank CapacityER 8-1/8"(3mm)
Spindle Weight46.4 oz (1.32kg)

602BT30 Dimensions

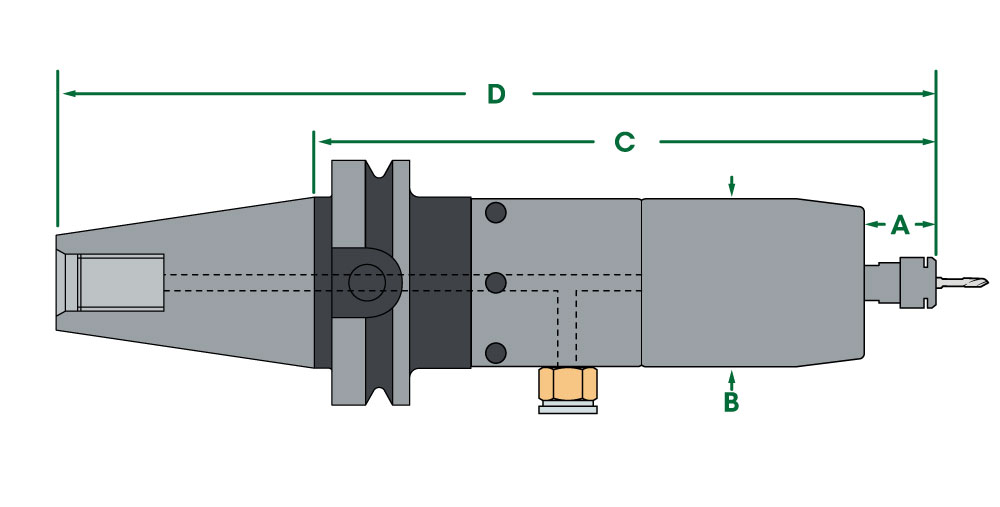

602BT30 Dimensional Drawing
602BT30 Dimensions
A0.75" (19mm)
B1.57” (40mm)
C6.18” (157mm)
D8.07” (205mm)

Equipment

Included Equipment

Spindle
Combo Filter Extractor (p/n #30008)
Collet
Wrenches
Hose
Fittings
Plug (for alternate air inlet not in use)
Carrying Case

Standard Equipment

ER 11 collet system (1/4” or 6mm collet standard – other sizes optional). 3/4” or 20mm shank standard (Metric Shank comes with metric collet, Inch Shank with inch collet). Oil-free 90 psi / 6.2 bar, clean, dry air supply required.

Accessories ModelsPart #
High Flow Filter / Regulator / Extractor30008
Tube 10mm O.D. - 6.5mm I.D. (order by foot)16508
Hose & Fitting - 10mm O.D. - 6.5mm I.D. - 12’30043

We retrofit any CNC machine to mill at a constant high speed 24/7 – so any CNC can be a high-speed machine. This includes, but isn’t limited to DMG MORI, Haas, Fanuc Robodrill, Doosan, Hermle, Hurco, GROB, Brother Okuma, Makino and Mazak. Easy installation using selectable air feed inlets – choose side inlet NPT / Stop Block or center through shank/tool holder air feed. HSK, CAT, BT, and DIN Toolholder options are available. Learn more about Air Turbine Spindles on your CNC Machine by visiting their page at the links below.

Automatically Tool Change on your CNC

Block and Collar on the Automatic Tool Changer Assembly

Automatically load Air Turbine Spindles® in CNC machines with our patented wrap-around Toolchanger Mounting Assembly (TMA). This option allows CNC tool-changers to automatically load/unload our family of high-speed precision spindles using a proprietary collar system and mounting block or ring around the CNC spindle integrated to the right side of the CNC spindle in minutes.

Toolchanger Mounting Assembly Collar and Block

Screw In Mounting Block

Toolchanger Mounting Assembly Two Piece Ring and Block

Two Piece Ring and Block

Toolchanger Mounting Assembly Drill Tap

Drill Tap

Mounting blocks or rings compatible with Haas, Hurco, Doosan, Robodrill, Hardinge, DMG, Brother, Okuma, and all other CNC’s are available. We are accustomed to developing custom solutions for any CNC. A Universal Block can be provided for drilling your CNC screw positions. Installation Kits are available. The TMA block remains on the CNC spindle for normal tool changes, even if not using the Air Turbine Spindles™ as it will not interfere when using the main spindle.

TMA Assembly Includes

  1.  Mounting block or ring assembly
  2. Spindle manifold collar with adjustable height connector to block

Auto Tool Change your Air Turbine Spindle® with the Tool Changer Mounting Assembly

ER8 - 1/8"ER8 - 3mm
Speed RPMPart #Speed RPMPart #
40,0006429040,00064291
50,0006429250,00064293
65,0006429465,00064295
90,0006429690,00064297

Videos

Brass Milling at 504”/min on Haas TM-2 by Air Turbine Spindles® 65,000 rpm 602JS

Painted Aluminum milled at 180"/min on Fadal CNC by Air Turbine Spindles® 65,000 rpm 602JS

Aluminum Engraving at 25”/min on Haas Mini Mill by Air Turbine Spindles® 65,000 rpm 602CAT40

Service & Support

Support is always available from our technical team in the USA, Germany and Mexico. Repair Service is available in Florida and Munich.

Call our factory technicians at +1-561-994-0500 or email us at [email protected].
