202DM
Straight Hand Tool Series
1/8” / 3mm Capacity
Reduce hand-arm stress and injury risk while increasing productivity – Impossible? Not at all. Combining safety in its low vibration and high power the 6 oz (0.17 kg) 202DM with trigger switch for quick-shut off can’t be matched for its power to weight ratio – just try it! At 0.55 hp (0.41 kW) the 202DM has an awesome power output from its large diameter turbine. The narrow shaft gives you exact control of that power for precision work. The vibration on the 202DM is so low it’s rated for nonstop work: 34 hours 44 minutes before reaching EAV 2.5 mm/s2 (A8), or 138 hours 55 minutes before reaching ELV 5 m/s2 (A8).
| 202DM Specifications | ||||
| Speed RPM | 30,000 | 40,000 | 50,000 | 65,000 |
| Power Rating hp (kW) | .40 (.30) | .45 (.34) | .50 (.37) | .55 (.41) |
| Inlet Air Pressure | 90 PSI (6.2 Bar) | |||
| Air Consumption Idle cfm (l/s) | 10 (4.72) | 13 (6.14) | 14 (6.61) | 14 (6.61) |
| Air Consumption Working Flow cfm (l/s) | 11 (5.19) - 20 (9.44) | |||
| Sound Level | Less Than 67 dBA | |||
| Max Shank Capacity | 1/8" (3mm) | |||
| Hand Tool Weight | 13oz (0.37kg) | |||

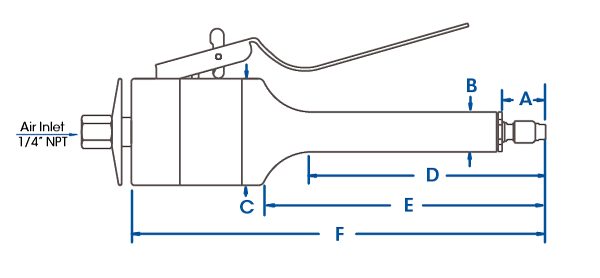

| 202DM Dimensions | |||
| A | 0.81” (20.57mm) | D | 4.36″ (110.74mm) |
| B | 0.75″ (19.05mm) | E | 5.28″ (134.11mm) |
| C | 2.00″ (50.80mm) | F | 7.73″ (196mm) |
Hand Tool, 1/8” or optional 3mm collet, collet wrenches, rear exhaust, trigger switch, and 1/4” NPT air supply fitting. Oil-free 90 psi / 6.2 bar, clean, dry air supply required.
| Accessories Models | Part # |
|---|---|
| High Flow Filter | 30004 |
| High Flow Filter / Regulator | 30003 |
| High Flow Filter / Regulator / Extractor | 30008 |
| 5’ Air Supply Assembly w/Fitting for DM Models | 30010 |
| 8’ Air Supply Assembly w/Fitting for DM Models | 30011 |
| 202DM Vibration Statistics | |
| Time to reach EAV 2.5 m/s² A(8) | 34 hours, 44 minutes |
| Time to reach ELV 5 m/s² A(8) | 138 hours, 55 minutes |
| Vibration magnitude m/s² r.m.s | 1.20 |
| 1/8″ | 3mm | ||
|---|---|---|---|
| Speed RPM | Part # | Speed RPM | Part # |
| 30,000 | 32232 | 30,000 | 32233 |
| 40,000 | 32242 | 40,000 | 32243 |
| 50,000 | 32252 | 50,000 | 32253 |
| 65,000 | 32262 | 65,000 | 32263 |
| 1/8″ w/break | 3mm w/break | ||
|---|---|---|---|
| Speed RPM | Part # | Speed RPM | Part # |
| 30,000 | 32236 | 30,000 | 32237 |
| 40,000 | 32246 | 40,000 | 32247 |
| 50,000 | 32256 | 50,000 | 32257 |
| 65,000 | 32266 | 65,000 | 32267 |
