201DM
Straight Hand Tool Series
1/8” / 3mm Capacity
You will immediately feel the 201DM’s ultra-low vibration and weight and hear the < 65 dBA sound level. The light 201 is powerful – designed to work reliably in industrial applications. The 201DM with trigger switch for quick-shut off is rated for nonstop work: 128 hours 15 minutes before reaching EAV 2.5 m/s2 A(8) or 513 hours before reaching EAV 5 m/s2 A(8). Now you can work safer and longer and there’s no maintenance required. Only a light hand guiding the 201DM is needed to get our signature benefits-improved precision, faster-cutting action, and finer finished surface quality. Equipment Included: Hand Tool, 1/8” or optional 3mm collet, collet wrenches, rear exhaust, trigger switch, and 1/4” NPT air supply fitting. Oil-free 90 psi / 6.2 bar, clean, dry air supply required.
| 201DM Specifications | |||
| Speed RPM | 40,000 | 50,000 | 65,000 |
| Power Rating hp (kW) | .15 (.11) | .2 (.15) | .2 (.15) |
| Inlet Air Pressure | 90 PSI (6.2 Bar) | ||
| Air Consumption Idle cfm (l/s) | 3 (1.51) | 4 (1.88) | 4 (1.88) |
| Air Consumption Working Flow cfm (l/s) | 4.8 (2.22) - 7 (3.30) | ||
| Sound Level | Less Than 67 dBA | ||
| Max Shank Capacity | 1/8" (3mm) | ||
| Hand Tool Weight | 9oz (0.25kg) | ||

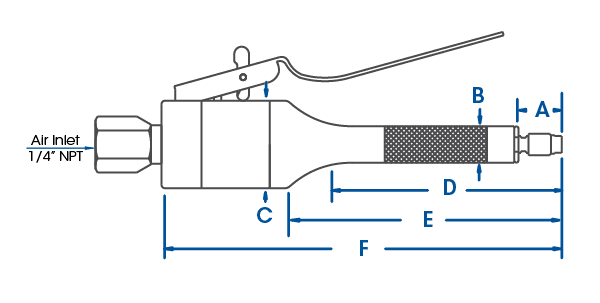

| 201DM Dimensions | |||
| A | 0.74” (18,80mm) | D | 3.59” (91.19mm) |
| B | 0.62” (15.75mm) | E | 4.69” (119.13mm) |
| C | 1.50” (38.10mm) | F | 6.85” (173.99mm) |
Hand Tool, 1/8” or optional 3mm collet, collet wrenches, rear exhaust, trigger switch, and 1/4” NPT air supply fitting. Oil-free 90 psi / 6.2 bar, clean, dry air supply required.
| Accessories Models | Part # |
|---|---|
| Low Flow Filter | 30002 |
| Low Flow Filter / Regulator | 30001 |
| 5’ Air Supply Assembly w/Fitting for DM Models | 30010 |
| 8’ Air Supply Assembly w/Fitting for DM Models | 30011 |
| 201DM Vibration Statistics | |
| Time to reach EAV 2.5 m/s² A(8) | 128 hours, 15 minutes |
| Time to reach ELV 5 m/s² A(8) | 513 hours |
| Vibration magnitude m/s² r.m.s | 0.62 |
| 1/8″ | 3mm | ||
|---|---|---|---|
| Speed RPM | Part # | Speed RPM | Part # |
| 40,000 | 32142 | 40,000 | 32143 |
| 50,000 | 32152 | 50,000 | 32153 |
| 65,000 | 32162 | 65,000 | 32163 |
| 1/8″ w/break | 3mm w/break | ||
|---|---|---|---|
| Speed RPM | Part # | Speed RPM | Part # |
| 40,000 | 32146 | 40,000 | 32147 |
| 50,000 | 32156 | 50,000 | 32157 |
| 65,000 | 32166 | 65,000 | 32167 |
