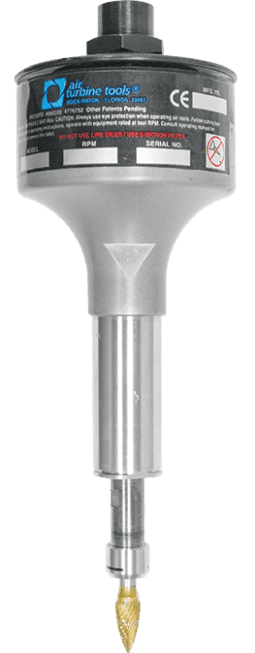

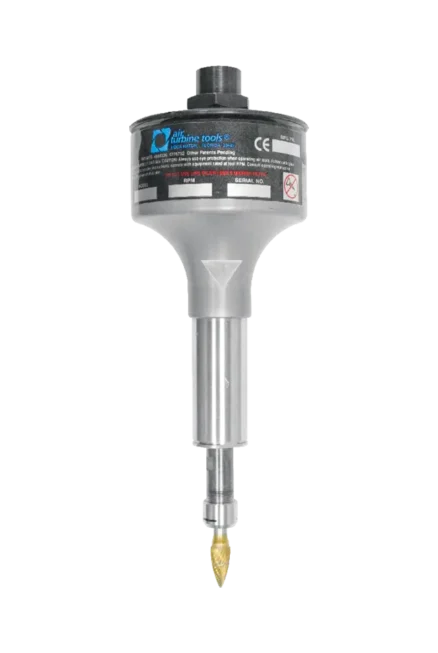

210HD
Heavy Duty Motor Mount Series
The 210HD motors with a long narrow stainless steel barrel have standard ER11 1/4” (6 mm) collet and were developed for use where power is needed with a narrow motor barrel for reach. The 210HD Series may be fixture mounted easily. The 210HD has a precision ground stainless steel barrel for accurate mounted applications. For heavy-duty applications see the 450HD. The 210HD Series has constant high speed to deliver a cleaner cut and increased feed rates.
Mountable area of Ø 25 mm OD by 35.46 mm. Ceramic bearing option available.
$ 1,400.00
| 210HD Specifications | ||
| Speed | 30,000 RPM | 40,000 RPM |
| Power Rating | 0.83 HP (0.61 kW) | 0.88 HP (0.65 kW) |
| Inlet Air Pressure | 90 psi (6.2 bar) | |
| Air Consumption Idle | 14 CFM (6.61 L/s) | |
| Air Consumption Working Flow | 14 CFM - 35 CFM (6.61 L/s - 16.52 L/s) |
|
| Air Hoses and Fittings Minimum Size | 8 mm internal diameter | |
| Sound Level | Less Than 78 dBA | |
| Max Shank Capacity | ER11 - 1/4” (6 mm) | |
| Motor Weight | 22 oz (0.62 kg) | |
| 210HD Specifications |
| Speed |
| Power Rating |
| Inlet Air Pressure |
| Air Consumption Idle |
| Air Consumption Working Flow |
| Air Hoses and Fittings Minimum Size |
| Sound Level |
| Max Shank Capacity |
| Motor Weight |
| 30,000 RPM | 40,000 RPM |
| 0.83 HP (0.61 kW) | 0.88 HP (0.65 kW) |
| 90 psi (6.2 bar) | |
| 14 CFM (6.61 L/s) | |
| 14 CFM - 35 CFM (6.61 L/s - 16.52 L/s) |
|
| 8 mm internal diameter | |
| Less Than 78 dBA | |
| ER11 - 1/4” (6 mm) | |
| 22 oz (0.62 kg) | |
Accelerate feed rates at 25,000 - 65,000 RPM Power to 1.4 HP
210HD Dimensions
All fittings, couplings, and hoses must have a minimum of 8 mm internal diameter.
| 210HD Dimensions | |||||
| A | 1.46” (37 mm) | D | 1.4” (35.46 mm) | F | Ø 3.10” (78.74 mm) |
| B | Ø 0.99” (25 mm) | ||||
| E | 5.5” (140 mm) | G | 7.0” (178 mm) | ||
| C | 3.75” (95 mm) | ||||
| 210HD Dimensions | |
| A | 1.46” (37 mm) |
| B | Ø 0.99” (25 mm) |
| C | 3.75” (95 mm) |
| D | 1.4” (35.46 mm) |
| E | 5.5” (140 mm) |
| F | Ø 3.10” (78.74 mm) |
| G | 7.0” (178mm) |
Equipment
Included Equipment
Standard Equipment
ER11 collet system. 1/4” or 6 mm standard, other sizes are available. Oil-free 90 psi / 6.2 bar clean, dry air supply required
| 210HD Accessories | |
|---|---|
| Model | Part Number |
| High Flow Filter | 30004 |
| High Flow Filter / Regulator | 30003 |
| 6’ Air Supply Assembly w/Fitting | 30012 |
| 210HD Part Numbers | ||
|---|---|---|
| Governed Speed | ER11 - 1/4" Part Numbers | ER11 - 6 mm Part Numbers |
| 30,000 RPM | 32452 | 32453 |
| 40,000 RPM | 32454 | 32455 |
Service & Support
Support is always available from our technical team in the USA and Germany. Repair Service is available in Florida and Munich. Call our factory technicians at +1-561-994-0500 or email us at [email protected].
