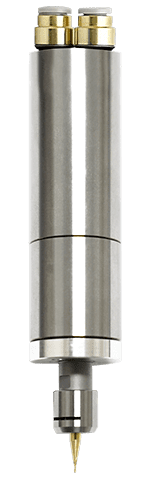

Air Turbine Live™ – 800XCLT Compact Lathe Series

Medical, aviation, and metalworking industries increase productivity dropping the 800X into Automatic Lathes. These sliding headstock lathes operate 7 days a week under enormous cost and time pressure. Economic production success depends on the speed and reliability of motor drive but the outdated motor technology has restricted productivity and resulted in high costs. The 800X series operates 24/7 at 60,000/80,000 rpm accelerating your production rate. This powerful patented spindle has a governor which maintains your rated speed in the cut. Air Turbine Live Tools™ are low friction direct drives with only 2 moving parts resulting in no heat and great reliability at high speed. Just connect 90 PSI, 6.2 Bar dry clean air supply, and mill on your Automatic.

800X Series Specifications
Speed RPM60,00080,000
Power Rating hp (Kw)0.15 (0.11)
Inlet Air Pressure90 PSI (6.2 Bar)
Air Consumption Idle cfm (l/s)3.5
Air Consumption Working Flow (l/s)5
Sound LevelLess Than 78 dBA
Max Shank CapacityER 8-1/8"(3mm)
Motor Weight5.6 oz (0.158 kg)

Keep up with Production Pressure with 80,000 RPM Air Turbine Live Tools™

Drop in the 800X Series for High Speed in Cut.

1
No control system, no lubricator, no gears or high frequency brushes to burn up.
2
No Heat. Direct Drive Reliability.
3
Just connect 90 PSI, 6.2 Bar dry clean air supply and mill on any Swiss Automatic.
4
No Wiring or Lubrication.

800XCTL Dimensions

800XCTL Dimensional Drawing
800XCLT Dimensions
AØ .47" (12.0 mm)C3.085" (78.36 mm)
B0.72" (18.29 mm)DØ 0.98" (25mm)

Equipment

Included Equipment

Low Flow Filter / Regulator (p/n #30001)
Collet
Wrenches
Hose
Fittings
Carrying Case

Standard Equipment

ER 8 UP collet system (1/8” or 3mm collet standard other sizes optional). Oil-free 90 psi / 6.2 bar clean, dry air supply required.

Accessories ModelsPart #
Low Flow Filter / Regulator30001
Tube 8mm O.D. - 5mm I.D. (order by foot)16506
Hose & Fitting - 8mm O.D. - 5mm I.D. - 12’30041
ER8- 1/8"ER8- 3mm
Speed RPMPart #Speed RPMPart #
60,0008001260,000080013
80,0008001680,00080017

Videos

60,000 RPM to 80,000 RPM on Tornos

80,000 RPM on Tornos: Interview with Philipe Charles and Jens Thing from Tornos

Get 60,000 / 80,000 RPM on your Swiss or Sliding Head Stock Lathe: Interview with MTDCNC

Service & Support

Support is always available from our technical team in the USA, Germany and Mexico. Repair Service is available in Florida and Munich.

Call our factory technicians at +1-561-994-0500 or email us at [email protected].
