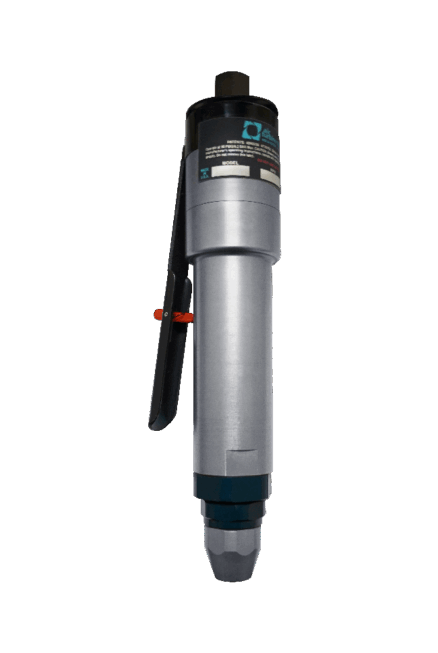

303RXDM
Router Series
The 303RXDM is a powerful router with a deadman’s handle. Incredibly lightweight, quiet, and durable. Minimize stress injury while delivering a clean precise cut free of oil contamination. Operate a constant high speed of 30,000 RPM or 40,000 RPM while maintaining the rated 0.8 HP (0.6 kW) power.
$ 700.00
| 303RXDM Specifications | ||
| Speed | 30,000 RPM | 40,000 RPM |
| Power Rating | 0.8 HP (0.6 kW) | |
| Inlet Air Pressure | 90 psi (6.2 bar) | |
| Air Consumption Idle | 19 CFM (8.97 L/s) | 20 CFM (9.44 L/s) |
| Air Consumption Working Flow | 22 CFM - 30 CFM (10.38 L/s - 14.16 L/s) |
|
| Air Hoses and Fittings Minimum Size | 8 mm internal diameter | |
| Sound Level | Less Than 67 dBA | |
| Max Shank Capacity | 1/4” (6 mm) | |
| Hand Tool Weight | 27 (0.75 kg) | |
| 303RXDM Specifications |
| Speed |
| Power Rating |
| Inlet Air Pressure |
| Air Consumption Idle |
| Air Consumption Working Flow |
| Air Hoses and Fittings Minimum Size |
| Sound Level |
| Max Shank Capacity |
| Hand Tool Weight |
| 30,000 RPM | 40,000 RPM |
| 0.8 HP (0.6 kW) | |
| 90 psi (6.2 bar) | |
| 19 CFM (8.97 L/s) | 20 CFM (9.44 L/s) |
| 22 CFM - 30 CFM (10.38 L/s - 14.16 L/s) |
|
| 8 mm internal diameter | |
| Less Than 67 dBA | |
| 1/4” (6 mm) | |
| 27 oz (0.75 kg) | |
These Air Tools Cut Steel and Stress
| 303RXDM Vibration Statistics | |
| Time to reach EAV 2.5 m/s² A(8) | 23 hours, 32 minutes |
| Time to reach ELV 5 m/s² A(8) | 94 hours, 6 minutes |
| Vibration magnitude m/s² r.m.s | 1.46 |
Don't Sacrifice Comfort and Safety for Performance!
Solve problems in hand operations with revolutionary Air Turbine Tools®. Reduce injury risk and repetitive stress on your hands and arm, and eliminate limitations on working time.
EAV = Time to reach Exposure Action Value
ELV = Exposure Limit Value
303RXDM Dimensions
All fittings, couplings, and hoses must have a minimum of 8 mm internal diameter.
| 303RXDM Dimensions | |||
| A | MIN: 1.5" (38.10 mm) MAX: 1.63" (41.40 mm) | B | 7.27" (184.66 mm) |
| C | Ø 1.62" (41.15 mm) | ||
| 303RXDM Dimensions | |
| A | MIN: 1.5" (38.10 mm) MAX: 1.63" (41.40 mm) |
| B | 7.27" (184.66 mm) |
| C | Ø 1.62" (41.15 mm) |
Equipment
Included Equipment
Standard Equipment
1/4” or 6 mm collet standard. Other sizes are available. Oil-free 90 psi / 6.2 bar clean, dry air supply required.
A 0.3 micron filter/regulator/extractor combination is a highly recommended accessory to operate Air Turbine Tools® to eliminate all impurities in your air supply.
| 303RXDM Accessories | |
|---|---|
| Model | Part Number |
| High Flow Filter | 30004 |
| High Flow Filter / Regulator | 30003 |
| High Flow Filter / Regulator / Extractor | 30008 |
| 5’ Air Supply Assembly w/Fitting for DM Models | 30010 |
| 8’ Air Supply Assembly w/Fitting for DM Models | 30011 |
| 303RXDM Part Numbers | |||
|---|---|---|---|
| Governed Speed | Optional Brake | 1/4" Part Numbers | 6 mm Part Numbers |
| 30,000 RPM | Does Not Include Brake | 43832 | 43833 |
| Includes Brake | 43836 | 43837 | |
| 40,000 RPM | Does Not Include Brake | 43842 | 43843 |
| Includes Brake | 43844 | 43847 | |
Service & Support
Support is always available from our technical team in the USA and Germany. Repair Service is available in Florida and Munich. Call our factory technicians at +1-561-994-0500 or email us at [email protected].
