HAAS CNC Main Spindle
More than 100% Improvement in Cycle Time
88 Minutes v.s. 35 Minutes
Test Parameters
Material: Aluminum 6061
End Mill: 0.04”
Depth of Cut OC: 0.01”
Results
4,000 RPM Haas CNC VM Machine Spindle
88 minutes at 4,000 RPM
50″/min (1,270 mm/min) advance rate

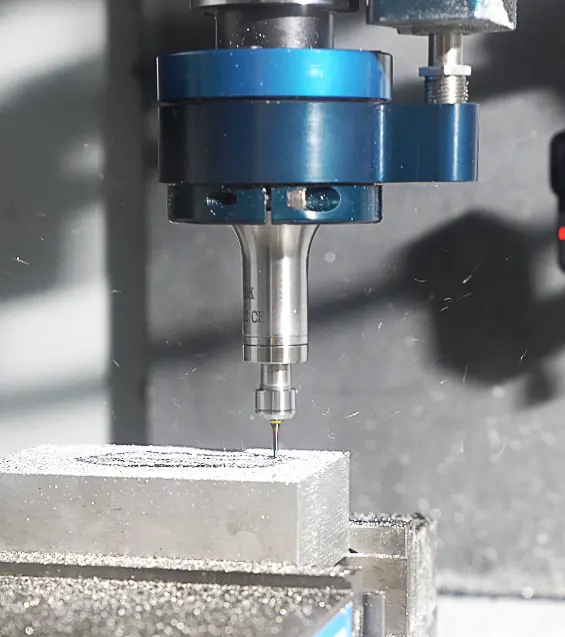

Air Turbine Spindles® 625CAT40
35 minutes at 40,000 RPM
500″/min (12,700 mm/min) advance rate
Haas CNC Main Spindle v. The Air Turbine CNC Spindle
How was the more then 100% improvement in cycle time achieved?
Air Turbine Spindles® are governor-controlled. Airflow increases if the rotational speed slows, maintaining the high speed under load when you start cutting – even on angles and hard materials. The constant high speed while in cut will improve your surface finishes and increase tool life while reducing production time.
No need for downtime to install our constant high speed direct drive spindles. Automatic Loading from any CNC Magazine is available.
