Comparison of Cycle Time and the Surface Quality

Standard Spindle v. Air Turbine Spindles® 50% Time Reduction

Test Parameters:

Test Parameters:Row depth 2.0-0.13 RA
Material:1.2344 Steel – HSC 30/70
Tool:Ball nose end mill R 2, 0.03mm/z

Cycle Time Comparison

Standard DMG HSC 55 Spindle
Speed:
25,000 RPM
Advance:
1,500 mm/min
Cycle Time:
60 Minutes
Air Turbine Spindles® 625HSK Spindle
Speed:
50,000 RPM
Advance:
3,000 mm/min
Cycle Time:
30 Minutes

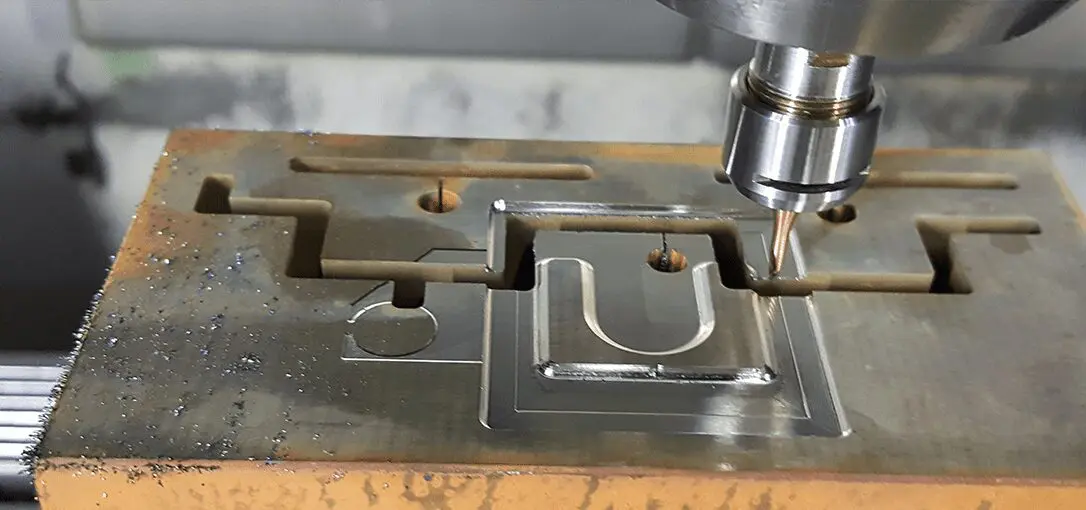

Any CNC becomes a high-speed machine in minutes with Air Turbine Spindles®.

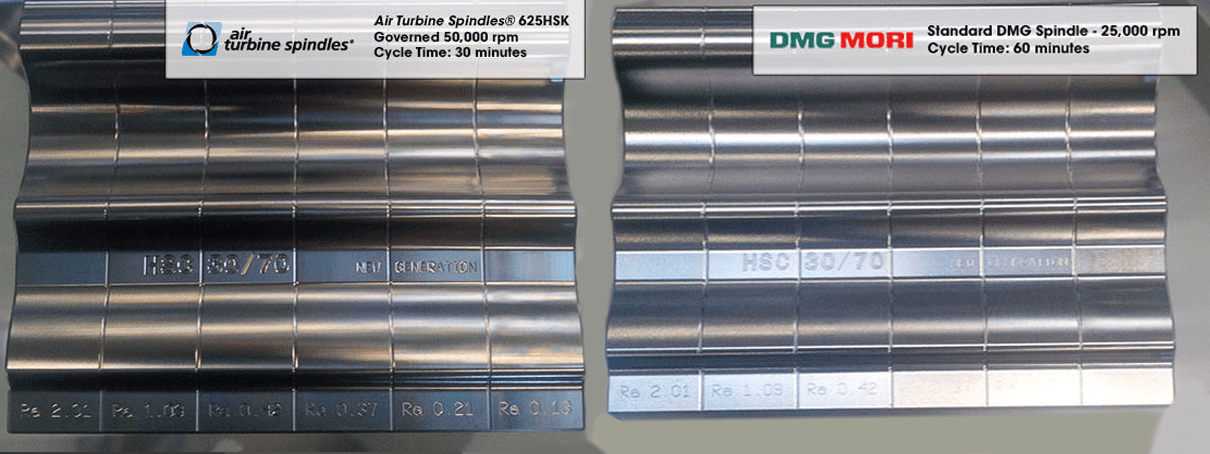

Side by side comparison of the HSC 30/70 milled by the 625 Air Turbine Spindle® and the Standard DMG HSC 55 Spindle.

The quality at Ra 0,13mµ and precision were indistinguishable between the 25,000 RPM DMG HSC 55 spindle.

Load your Air Turbine Spindles® automatically from any CNC magazine into your main spindle. Clean dry compressed air is induced through a clean airline, or an optional patented mounting block and collar, for seamless integration in your program. No manual hook up required unless preferred.

A 625 model spindle on a DMG Mori.

Maintain constant high speed on the tool path at 25,000 to 90,000 RPM with power to 1.4 HP (1.04 kW) – You keep constant high rotational speed in angles and hard materials. This is because Air Turbine Spindles® patented governor increases airflow in the turbine in proportion to the load. Reliable with low vibration, no heat, and no duty cycle for 24/7 milling.

Our direct drives have only 2 moving parts – our proprietary turbine and ceramic bearings, and the bearings are cooled by turbine airflow. No High-frequency brushes, no gears to burn up, no control system.

Just connect to 90 psi / 6.2 bar and high-speed Air Turbine Spindles® and mill, drill, and accelerate your feeds with no duty cycle. No control system or lubrication required.

For European Clients, Please Contact:

Mr. Wolfgang Pfahler

Thanks to DMG Mori for this comparison test at DMG Mori Seiki’s Geretstreid Showroom near Munich.
