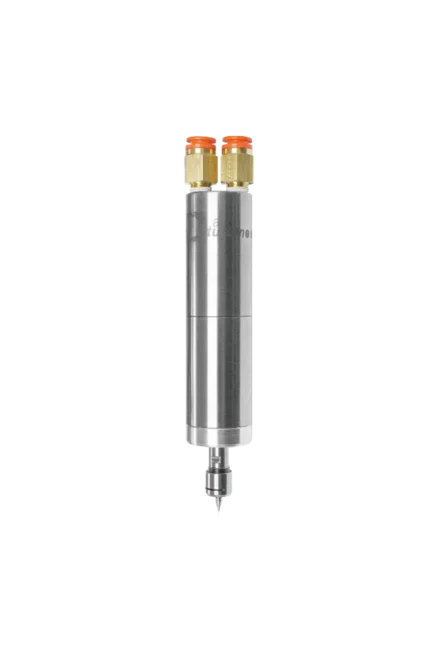

732MX
Sealed Steel Series
The popular 732MX is ideal for lab mills, lathes and swiss automation, and all fixture and robotic applications. Reach deep and run faster for accelerated production and cleaner cutting action.
Get finer finished surfaces with faster cycle times. Lower vibration and greater reliability result from fewer moving parts in this direct drive, oil free geared double turbine motor.
Mountable area of Ø 32mm OD by 95mm. Completely sealed with hose exhausts.
| 732MX Specifications | ||
| Speed RPM | 50,000 | 65,000 |
| Power Rating hp (Kw) | 0.20 (0.15) | |
| Inlet Air Pressure | 90 PSI (6.2 Bar) | |
| Air Consumption Idle cfm (l/s) | 4 (1.89) | |
| Air Consumption Working Flow (l/s) | 6 (2.83) - 9 (4.24) | |
| Air Hoses and Fittings Minimum Size | 5mm ID | |
| Sound Level | Less Than 78 dBA | |
| Max Shank Capacity | ER 8 UP - 1/8” (3mm) | |
| Motor Weight | 18 oz (0.51 kg) | |
732MX Dimensions
All fittings, couplings, and hoses must have a minimum of 5mm internal diameter.
| 732MX Dimensions | |||||
| A | 0.91” (23.03mm) | C | 0.60” (15.24mm) | E | 4.34” (110.35mm) |
| B | Ø 1.18” (30.00mm) | D | 3.74” (95.11mm) | F | 5.25” (133.35mm) |
Equipment
Included Equipment
► 732MX Motor
► ER 8 UP Collet System (1/8” or 3mm)
► Collet Wrenches
► Low Flow Filter Regulator / Extractor
► Air Hoses
► Carrying Case
Standard Equipment
ER 8 UP Collet System (1/8” or 3mm collet.)
Oil-free 90 psi / 6.2 bar clean, dry air supply required.
| Accessories Models | Part # |
|---|---|
| Low Flow Filter Regulator / Extractor | 30006 |
| Tube 8mm O.D. - 5mm I.D. (order by foot) | 16506 |
| Hose & Fitting - 8mm O.D. - 5mm I.D. - 12’ | 30041 |
| ER8- 1/8" | ER8- 3mm | ||
|---|---|---|---|
| Speed RPM | Part # | Speed RPM | Part # |
| 50,000 | 70104 | 50,000 | 70105 |
| 65,000 | 70108 | 65,000 | 70109 |
