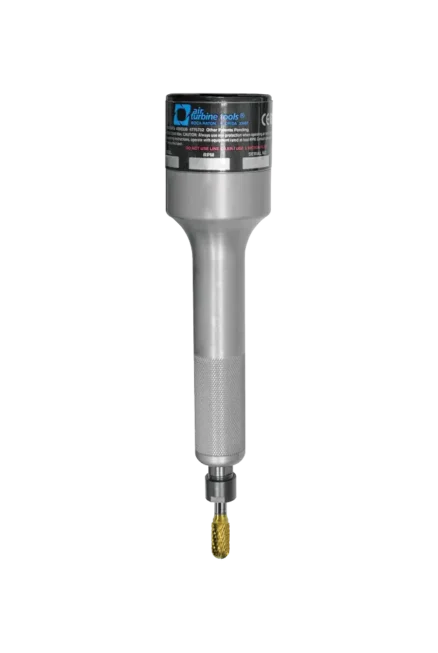

525XSV
Straight Hand Tool Series
1/4” / 6mm Capacity
Exceptionally powerful and comfortable! The 525XSV with slide valve for quick-shut off delivers high torque at lower speeds. Double turbine power combines with lightweight, low vibration, low noise and provides greater accuracy and a finer high-quality finish.
The constant high-speed 525XSV enables you to work on hard-to-reach applications for fast removal or finishing – comfortably with a light touch directing the tool. At up to 0.80 hp (0.60 kW) high speed cutting action on your workpiece is assured. Patented automatic brake option stops this tool in a few seconds.
| 525XSV Specifications | ||
| Speed RPM | 30,000 | 40,000 |
| Power Rating hp (kW) | 0.80 (0.60) | |
| Inlet Air Pressure | 90 PSI (6.2 Bar) | |
| Air Consumption Idle cfm (l/s) | 19 (8.97) | 20 (9.44) |
| Air Consumption Working Flow cfm (l/s) | 22 (10.38) - 30 (14.16) | |
| Air Hoses and Fittings Minimum Size | 8mm ID | |
| Sound Level | Less Than 67 dBA | |
| Max Shank Capacity | 1/4” (6mm) | |
| Hand Tool Weight | 15.5oz (0.44kg) | |
These Air Tools Cut Steel and Stress
Don't Sacrifice Comfort and Safety for Performance!
Solve problems in hand operations with revolutionary Air Turbine Tools®. Reduce injury risk and repetitive stress on your hands and arm, and eliminate limitations on working time.
EAV = Time to reach Exposure Action Value
ELV = Exposure Limit Value
| 525XSV Vibration Statistics | |
| Time to reach EAV 2.5 m/s² A(8) | 23 hours, 32 minutes |
| Time to reach ELV 5 m/s² A(8) | 94 hours, 6 minutes |
| Vibration magnitude m/s² r.m.s | 1.46 |
525XSV Dimensions
All fittings, couplings, and hoses must have a minimum of 8mm internal diameter.
| 525XSV Dimensions | |||
| A | 0.86” (21.84mm) | D | 4.97” (126.24mm) |
| B | 1.00” (25.40mm) | E | 5.64” (143.26mm) |
| C | 2.00” (50.80mm) | F | 8.13” (206.50mm) |
Equipment
Included Equipment
| Accessories Models | Part # |
|---|---|
| High Flow Filter | 30004 |
| High Flow Filter / Regulator | 30003 |
| High Flow Filter / Regulator / Extractor | 30008 |
| 5’ Air Supply Assembly w/Fitting for SV Models | 32207 |
| 1/4" | 6mm | ||
|---|---|---|---|
| Speed RPM | Part # | Speed RPM | Part # |
| 30,000 | 42530 | 30,000 | 42531 |
| 40,000 | 42540 | 40,000 | 42541 |
| 1/4" w/break | 6mm w/break | ||
|---|---|---|---|
| Speed RPM | Part # | Speed RPM | Part # |
| 30,000 | 42534 | 30,000 | 42535 |
| 40,000 | 42544 | 40,000 | 42545 |
