2590SVR

Angle Hand Tool Series

1/4” / 6mm Capacity

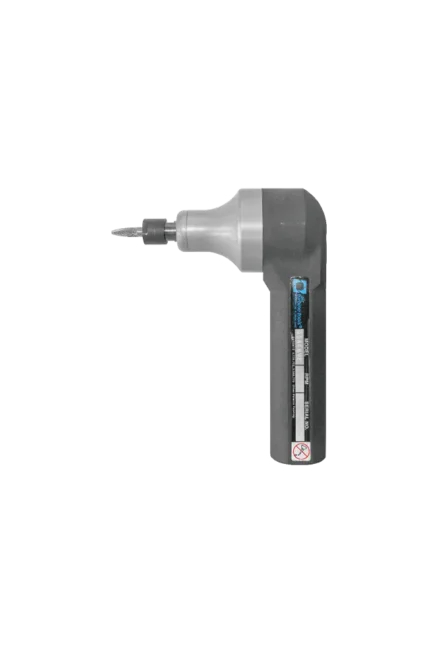

The patented 90° 2590SVR angle tool with slide valve control and rear exhaust is designed with the turbine in its angle head and no gears. This design results in lightweight with no heat and low vibration. Excellent for deburring and finishing. High rotational speed is maintained by our patented governed turbines so you simply guide the 2590SVR letting speed do the work with just a light hand. Just 2 moving parts in this tool for super reliability and the 2590SVR is both maintenance-free and totally oil-free. Select governed 30,000 or 40,000 rpm. Optional trigger switch for quick-shut off available.

Optional dead man’s trigger switch for quick-shut off available with the 2590DM.

2590SVR Specifications
Speed RPM30,00040,000
Power Rating hp (kW)0.4 (0.30) 0.45 (0.34)
Inlet Air Pressure90 PSI (6.2 Bar)
Air Consumption Idle cfm (l/s)10 (4.72)13 (6.14)
Air Consumption Working Flow cfm (l/s)11 (5.19) - 20 (9.44)
Sound LevelLess Than 67 dBA
Max Shank Capacity1/4” (6mm)
Hand Tool Weight18oz (0.50kg)

Dimensional

2590SVR Dimensions
A 0.86” (21.84mm) D 1.37” (34.80mm)
B 1.00” (25.40mm) E 4.00” (101.60mm)
C 2.90” (73.66mm) F 6.49” (164.85mm)

Hand Tool, 1/4” or optional 6mm collet, collet wrenches, front exhaust. 5’ air supply assembly with slide valve and 1/4” NPT air supply fitting. Oil-free 90 psi / 6.2 bar, clean, dry air supply required.

Accessories Models Part #
High Flow Filter 30004
High Flow Filter / Regulator 30003
High Flow Filter / Regulator / Extractor 30008
5’ Air Supply Assembly w/Fitting for SV Models 34207
2590SVR Vibration Statistics
Time to reach EAV 2.5 m/s² A(8) 64 hours, 11 minutes
Time to reach ELV 5 m/s² A(8) 256 hours, 41 minutes
Vibration magnitude m/s² r.m.s 0.88
1/4″ 6mm
Speed RPM Part # Speed RPM Part #
30,000 35830 30,000 35831
40,000 35840 40,000 35841

Service & Support

Support is always available from our technical team in the USA and Germany. Repair Service is available in Florida and Munich. Call our factory technicians at +1-561-994-0500 or email us at [email protected].
