0145SSV
Angle Hand Tool Series
1/8” / 3mm Capacity
Put the 0145SSV in your fingers or palm and experience exceptionally fine control necessary for close proximity work. Feather-light at 6 oz (0.17 kg) the 0145SSV has lots of torque. The 0145 is so naturally balanced that it feels like an extension of your hand. This tool is effective for precision work, marking, or deburring but it’s so light you hardly notice you are working. Our patented 45° design conforms to the natural position of your hand for hand-eye coordination. Because the motor is in the 45° head there are no gears, vanes, or brushes to vibrate or heat up. As a result, the 0145 delivers direct drive reliability with only 2 moving parts combined with lower vibration and weight than a gear head.
| 0145SSV Specifications | |||
| Speed RPM | 40,000 | 50,000 | 65,000 |
| Power Rating hp (kW) | 0.15 (0.11) | 0.20 (0.15) | 0.20 (0.15) |
| Inlet Air Pressure | 90 PSI (6.2 Bar) | ||
| Air Consumption Idle cfm (l/s) | 3.2 (1.51) | 4 (1.89) | |
| Air Consumption Working Flow cfm (l/s) | 4.7 (2.22) - 7 (3.30) | ||
| Air Hoses and Fittings Minimum Size | 3/16" ID | ||
| Sound Level | Less Than 67 dBA | ||
| Max Shank Capacity | 1/8" (3mm) | ||
| Hand Tool Weight | 6oz (0.17kg) | ||
These Air Tools Cut Steel and Stress
Don't Sacrifice Comfort and Safety for Performance!
| 0145SSV Vibration Statistics | |
| Time to reach EAV 2.5 m/s² A(8) | 30 hours, 44 minutes |
| Time to reach ELV 5 m/s² A(8) | 122 hours, 53 minutes |
| Vibration magnitude m/s² r.m.s | 1.28 |
Solve problems in hand operations with revolutionary Air Turbine Tools®. Reduce injury risk and repetitive stress on your hands and arm, and eliminate limitations on working time.
EAV = Time to reach Exposure Action Value
ELV = Exposure Limit Value

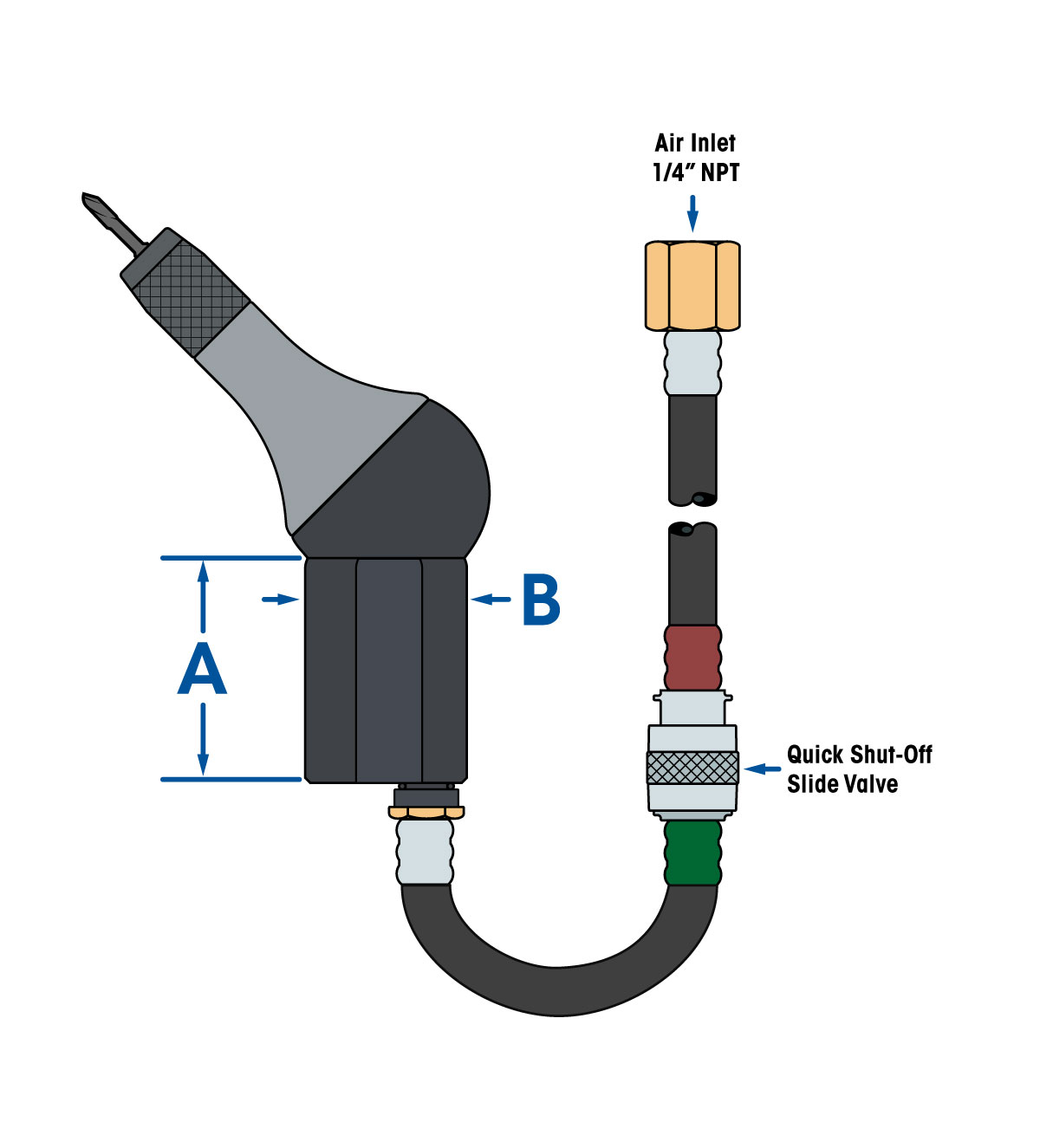

0145SSV Dimensions
All fittings, couplings, and hoses must have a minimum of 3/16" internal diameter.
| 0145SSV Dimensions | |||
| A | 0.85” (21.59mm) | D | 1.25” (31.75mm) |
| B | 2.57” (65.15mm) | E | 1.74” (44.20mm) |
| C | 1.50” (38.10mm) | F | 4.30” (109.22mm) |
Equipment
Included Equipment
Standard Equipment
1/8” or 3mm collet standard – other sizes optional. Oil-free 90 psi (6.2 bar), clean, dry air supply required.
| Accessories Models | Part # |
|---|---|
| Low Flow Filter | 30002 |
| Low Flow Filter / Regulator | 30001 |
| 5’ Air Supply Assembly w/Fitting for SV Models | 32107 |
| 1/8" | 3mm | ||
|---|---|---|---|
| Speed RPM | Part # | Speed RPM | Part # |
| 40,000 | 35042 | 40,000 | 35043 |
| 50,000 | 35052 | 50,000 | 35053 |
| 65,000 | 35062 | 65,000 | 35063 |
